FRAS-F 4/21 24 V AC/DC CAN
Description

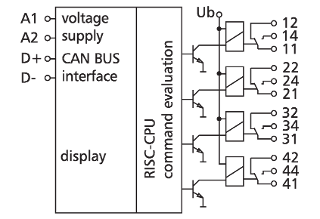

CAN module with 4 digital outputs. It is suitable for switching electrical components, for example motors, contactors, lamps, louvers, etc. With strong inductive loads, we recommend protecting the relay contacts additionally with an RC element. The fieldbus module is an input module for universal use. It is controlled by means of the CAN bus. The module is addressed by means of an adjustable address. Data bytes transmit whether data are queried or commands are executed. If there is a digital input module with the same address in the system, the module can be operated by remote control.

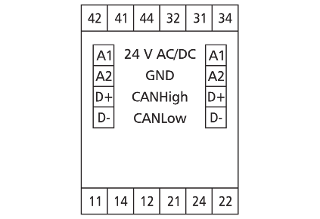

- Connection with spring clamp terminal blocks (push-in)
Technical Data
General Data
CAN
00 to 99
2.0B passive (two-wire bus)
20 to 500 kBit/s
24 V AC/DC +/- 10 % (SELV)
205 mA (AC) / 67 mA (DC)
100 %
550 ms
4 x changeover contacts (4 DPST)
250 V AC
5 A / output
max. 12 A / all outputs
Green, red and yellow LED
35 x 69.3 x 60 mm
104 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
