LF-DI4 LON
Description

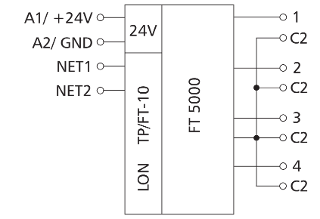

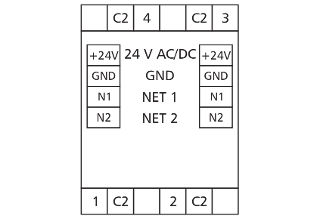

The LON module with 4 digital inputs was developed for decentralized switching tasks. It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors. The input terminals 1 to 4 are wired with the C2 terminals to potential-free switches or contacts. The inputs can be scanned individually or simultaneously by SNVT network variables. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with screw type terminal blocks
Technical Data
General Data
TP/FT-10, free topology
FT5000
78 KBit/s
24 V AC/DC +/- 10 % (SELV)
63 mA (AC) / 21 mA (DC)
100 %
550 ms
4 x contact inputs
4.5 V DC
Green and yellow LED
35 x 69.3 x 60 mm
72 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Part number
1108501319
4250184135685
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (LON I/O components)
- Brochure (Intelligent system components with integrated application software)
- REACh Statement
- 3D-Data - Registration required -
- Software (Template_LF-DI4)
- Software (LON Resource Files 1.32)
- Software (METZ Connect PlugIn LF-ALL 2.0.0)
- Mounting note (1108501319, 110850131970)
- Mounting note (Safety Instructions multilingual )
- Software manual
