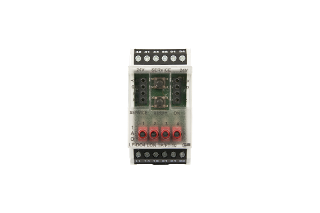

LF-DO4 LON
Description
The LON module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The outputs can be actuated by SNVT network variables. The module has a manual control activated only in configured mode. In addition, an adjustable wipe function is integrated. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with screw type terminal blocks
Technical Data
General Data
TP/FT-10, free topology
FT5000
78 KBit/s
24 V AC/DC +/- 10 % (SELV)
205 mA (AC) / 67 mA (DC)
100 %
550 ms

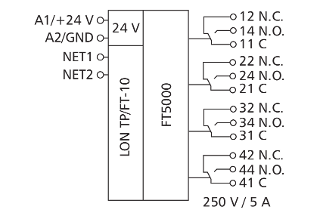

4 x changeover contacts (4PDT)
max. 250 V AC
5 A / output
max. 12 A / all outputs
360 cycles/h
Green and yellow LED
35 x 69.3 x 60 mm
104 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Part number
1108521321
4250184135715
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (LON I/O components)
- Brochure (Intelligent system components with integrated application software)
- REACh Statement
- 3D-Data - Registration required -
- Software (Template_LF-DO4)
- Software (LON Resource Files 1.32)
- Software (METZ Connect PlugIn LF-ALL 2.0.0)
- Mounting note (1108521321, 110852132170)
- Mounting note (Safety Instructions multilingual )
- Software manual (LON Software-Handbuch)
Additional Information
