LF-F-AI8 LON
Description

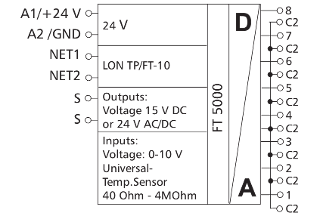

The LON module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks. It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc. The inputs can be scanned simultaneously by SNVT network variables. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with spring clamp terminal blocks (push-in)
Technical Data
General Data
TP/FT-10, free topology
FT5000
78 KBit/s
24 V AC/DC +/- 10 % (SELV)
67 mA (AC) / 24 mA (DC)
100 %
550 ms
8 x individually configurable
40 Ohm to 4 MOhm
0 V to 10 V DC
10 mV (0 to 100 %)
10 mV
0.1 %
1 %
Green and yellow LED
50 x 69.3 x 60 mm
126 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Part number
1108531370
4251394620640
