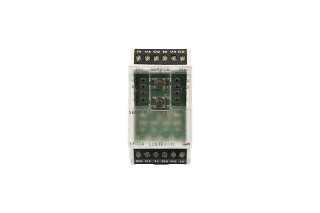

LF-CI4 LON
Description
The LON module with analog inputs was developed for decentralized switching tasks. It is suitable for detecting 4 currents and 4 voltages of, for example, active temperature sensors, electrical vent and mixing valves, valve positions, etc. The inputs can be scanned by SNVT network variables. Suitable for decentralized mounting on TH35 rails according to IEC 60715 in electrical distribution cabinets.

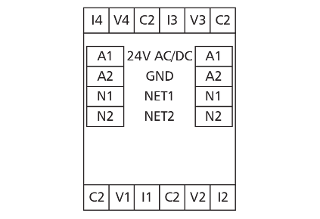

- Connection with screw type terminal blocks
Technical Data
General Data
TP/FT-10, free topology
FT5000
78 KBit/s
24 V AC/DC +/- 10 % (SELV)
67 mA (AC) / 24 mA (DC)
100 %
550 ms
4 x voltage, 4 x current
0 V to 10 V DC
10 mV (0 to 100 %)
10 kOhm
0 to 20 mA DC
0.05 mA
1 %
Green and yellow LED
35 x 69.3 x 60 mm
84 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Part number
1108601332
4250184135821
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (LON I/O components)
- 3D-Data - Registration required -
- Software (Template_LF-CI4)
- Software (LON Resource Files 1.32)
- Software (METZ Connect PlugIn LF-ALL 2.0.0)
- Mounting note (1108601332, 110860133270)
- Mounting note (Safety Instructions multilingual )
- Software manual
Additional Information
