LF-DI230 LON
Description

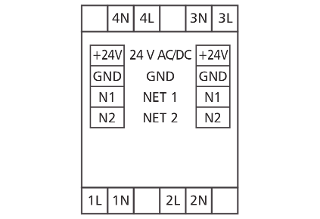

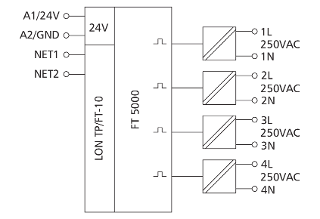

The LON module with 4 digital inputs was developed for decentralized switching tasks. It is suitable for detecting 230 V AC switch states, for example, switches or buttons for light control. The input terminals 1L to 4L are wired with 1N to 4N terminals to 230 V AC via switches or contacts. The inputs can be integrated individually or simultaneously by SNVT network variables. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with screw type terminal blocks
Technical Data
General Data
TP/FT-10, free topology
FT5000
78 KBit/s
24 V AC/DC +/- 10 % (SELV)
63 mA (AC) / 24 mA (DC)
100 %
550 ms
4 x digital
230 V AC/DC
Green and yellow LED
35 x 69.3 x 60 mm
72 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Part number
11086313
4250184146988
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (LON I/O components)
- 3D-Data - Registration required -
- Software (Template_LF-DI4)
- Software (LON Resource Files 1.32)
- Software (METZ Connect PlugIn LF-ALL 2.0.0)
- Mounting note (11086313, 1108631370)
- Mounting note (Safety Instructions multilingual )
- Software manual
