Which sensors can be connected to the MR-AI8?
Sensors in range from 40 Ohm to 4 MOhm and 0 to 10 V, already stored types (e.g. PT1000) are found in the software manual, a user-defined temperature curve can also be created.
MR-AI8 Modbus RTU
Description

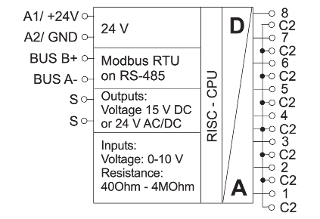

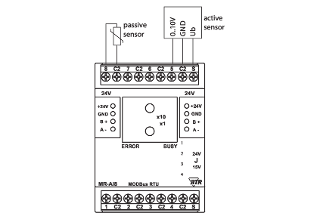

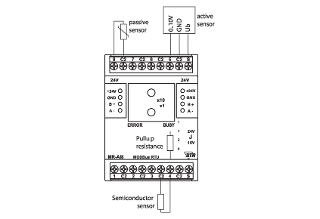

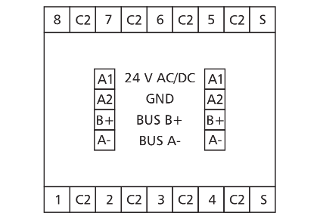

The Modbus module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks. It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc. The inputs can be configured universally by means of standard registers via a Modbus master. Module address, bit rate and parity are set with two rotary switches on the front or by software. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with screw type terminal blocks
Technical Data
General Data
Modbus RTU
00 to 99
RS485 (two-wire bus)
1200 to 115200 bit/s
24 V AC/DC +/- 10 % (SELV)
65 mA (AC) / 25 mA (DC)
100 %
8 x individually configurable
40 Ohm to 4 MOhm
0 V to 10 V DC
15 bit
10 mV
0.1 %
1 %
Green and red LED
50 x 69.3 x 60 mm
104 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Accessory of
Part number
11083213
4250184135616
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (Data logger)
- Brochure (Modbus Gateway - Network connection of Modbus RTU fieldbus components)
- Brochure (Modbus RTU components)
- REACh Statement
- 3D-Data - Registration required -
- Mounting note (11083213, 1108321370 MR-(F)AI8 UL listed)
- Mounting note (Safety Instructions multilingual )
- Software manual
FAQ's
Can passive three or four wire sensors be connected to the MR-AI8?
No, only possible with the EWIO2.
