What is the difference between the MR-DIO4/2 and MR-DIO4/2S?
The MR-DIO4/2 has 2 changeover contacts (switch-on current 80 A, less than 20 ms) and the MR-DIO4/2S has 2 NO contacts (switch-on current 160 A, less than 20 ms).
MR-F-DIO4/2 Modbus RTU

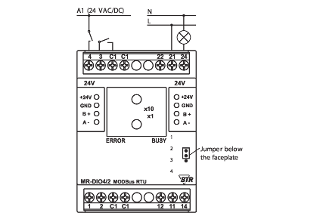

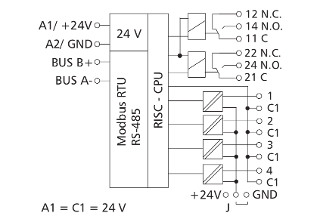

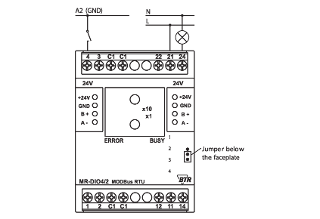

Description
The Modbus module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks. It is suitable for accommodating, for example, light switches and window contacts in a room, switching 2 light strips or controlling louvers. It can also be used to control 2 motorized fire dampers. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs can be used as contact or voltage inputs. The inputs and outputs can be switched and scanned by means of standard registers via a Modbus master. Module address, bit rate and parity are set with 2 rotary switches on the front or by software. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

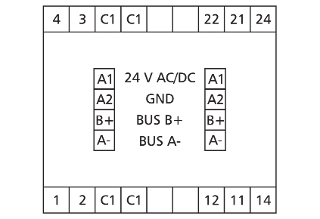

- Connection with spring clamp terminal blocks (push-in)
Technical Data
General Data
Modbus RTU
00 to 99
RS485 (two-wire bus)
1200 to 115200 bit/s
24 V AC/DC +/- 10 % (SELV)
200 mA (AC) / 75 mA (DC)
100 %
4 x digital
30 V AC/DC
more than 7 V AC/DC
2 changeover contacts (DPDT)
250 V AC
16 A / relay
80 A, less than 20 ms
Green, red and yellow LED
50 x 69.3 x 60 mm
126 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
