Which initial state do the MR-DO(A)4 outputs have after a reset or communication loss?
Is defined by the value in register 1 (see software manual).
MR-DOA4 Modbus RTU
Description

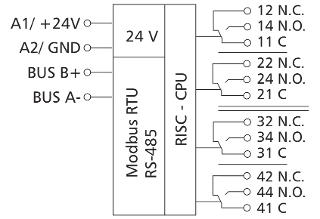

The Modbus module with 4 digital outputs was developed for decentralized switching tasks. It is suitable for switching electrical components, such as motors, contactors, lamps, louvers, etc. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The outputs can be switched by means of standard registers via a Modbus master. Module address, bit rate and parity are set with 2 rotary switches on the front or by software. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with screw type terminal blocks
Technical Data
General Data
Modbus RTU
00 to 99
RS485 (two-wire bus)
1200 to 115200 bit/s
24 V AC/DC +/- 10 % (SELV)
200 mA (AC) / 70 mA (DC)
100 %
4 changeover contacts (4PST)
250 V AC
5 A / output
360 cycles/h
Green, red and yellow LED
35 x 69.3 x 60 mm
95 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Accessory of
Part number
110836132101
4250184158745
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (Data logger)
- Brochure (Modbus Gateway - Network connection of Modbus RTU fieldbus components)
- Brochure (Modbus RTU components)
- 3D-Data - Registration required -
- Mounting note (1108361321, 110836132101, 110836132170, 11083613210170)
- Mounting note (Safety Instructions multilingual )
- Software manual
FAQ's
Additional Information
