Can you edit or reset the pulse value of the MR-SI4?
No, it is an unalterable counter.
MR-F-SI4 Modbus RTU
Description

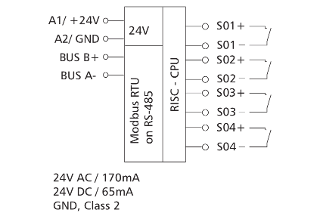

The Modbus module with 4 S0 inputs to DIN EN 62053-31 class A was developed for decentralized switching tasks. It is suitable for counting S0 counter pulses. This allows very good integration of the module into an energy controlling system. In case of a power failure, the last counter readings are saved. The inputs can be scanned by means of standard registers via a Modbus master. Module address, bit rate and parity are set with two rotary switches on the front or by software. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with spring clamp terminal blocks (push-in)
Technical Data
General Data
Modbus RTU
00 to 99
RS485 (two-wire bus)
1200 to 115200 bit/s
24 V AC/DC +/- 10 % (SELV)
170 mA (AC) / 65 mA (DC)
100 %
4 x S0 input, class A
DIN EN 62053-31
Green, red and yellow LED
35 x 69.3 x 60 mm
83 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory

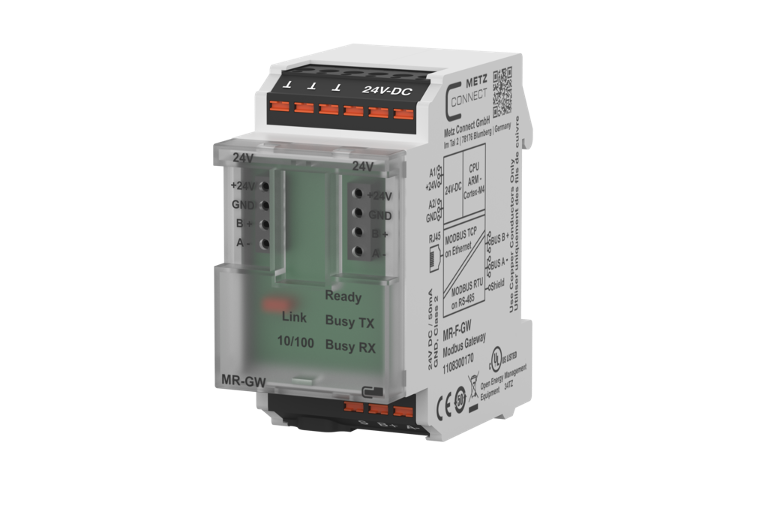

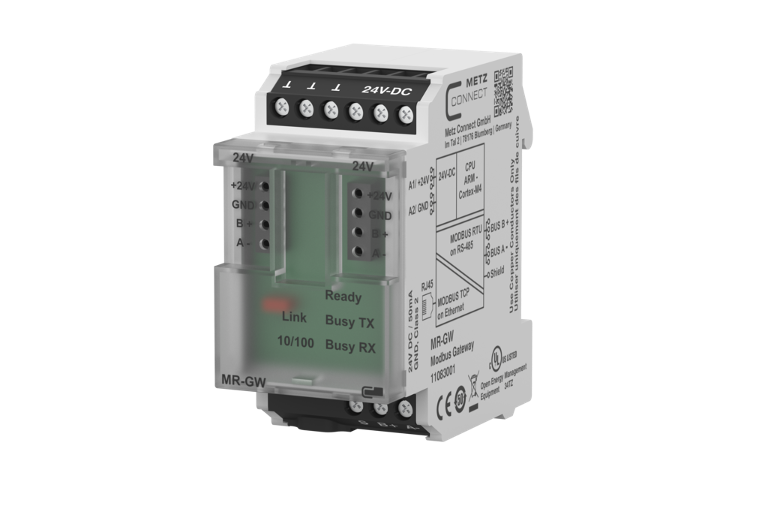

Accessories
Accessory of
Part number
1108391370
4251394620701
Downloads
- Brochure (Intelligent system components with integrated application software)
- Brochure (Data logger)
- Brochure (Modbus Gateway - Network connection of Modbus RTU fieldbus components)
- Brochure (Modbus RTU components)
- 3D-Data - Registration required -
- Mounting note (11083913, 1108391370)
- Mounting note (Safety Instructions multilingual )
- Data sheet
- Software manual
FAQ's
Can you edit or reset the pulse value of the MR-SI4?
No, it is an unalterable counter.
