SMM-E16, 230 V AC/DC
Description

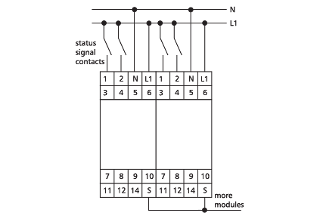

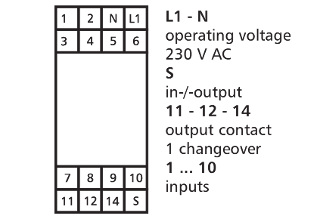

The annunciator module can indicate to 10 incoming messages by means of a relay. The relay is activated as soon as a voltage is applied to min. one of the 10 inputs. The supply voltage has to be applied continuously to the terminals L1 - N. Several modules with the same voltage can be grouped over the input/output S. As soon as one relay of the modules is activated, all other relays of the modules operated in parallel are activated.
- Cascade connection of the devices possible
- 10 signal inputs
- Connection with screw-type terminals
Technical Data
General Data
230 V AC
20 mA
1 changeover contact (SPDT)
AgSnO2
250 V
6 A
1200 cycles/h
10 ms
5 ms
1 x 107
1 x 105
2.5 mm2
22.5 x 61.3 x 60 mm
70 g
-10 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
110518
4250184122371
