STM-C12
Description

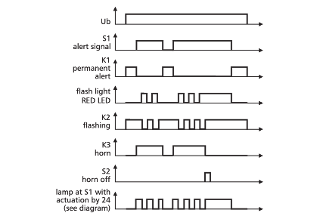

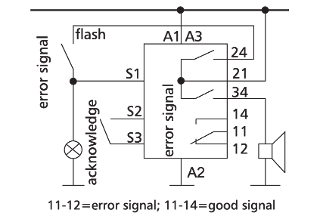

When a fault message is applied, an alarm signal, a flashing signal and a horn relay are activated. The horn relay can be switched off by means of the incorporated pushbutton or an externally applied signal. An active alarm signal is shown as long as it is applied.
- acknowledgeable horn output
- Connection with screw-type terminals
Technical Data
General Data
24 V AC/DC, 230 V AC
less than 60 mA
3 relay outputs
AgSnO2
250 V
4 A
360 cycles/h
1 x 107 switching cycles
1 x 105switching cycles
2.5 mm2
Yellow LED
35 x 69.3 x 60 mm
70 g
0 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
110520
4250184122395
Downloads
- 3D-Data - Registration required -
- Data sheet
- ePLAN data - Registration required -
