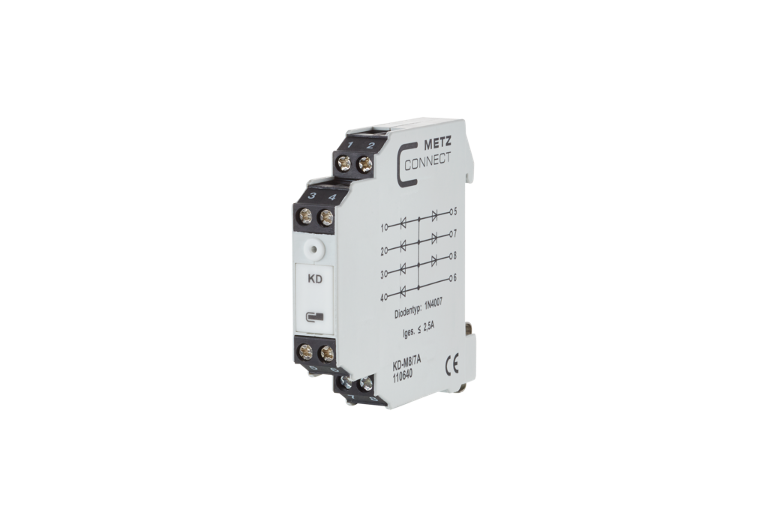

KD-M8/7A
Description
The diode module is equipped with 7 diodes. The anodes of the diodes are all connected to each other. The module is used for failure indication systems (lamp tests).
- common anode
- Connection with screw-type terminals
Technical Data
General Data
1000 V
250 V AC/DC
1 A
1.1 V at 1 A
less than or equal to 1.8 A
30 µA at 75 °C
11.2 x 61.3 x 60 mm
20 g
-10 °C to +50 °C
-25 °C to +70 °C
IP40 / IP20
Check US distributor inventory
Part number
110640
4250184122814
