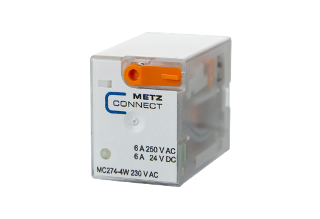

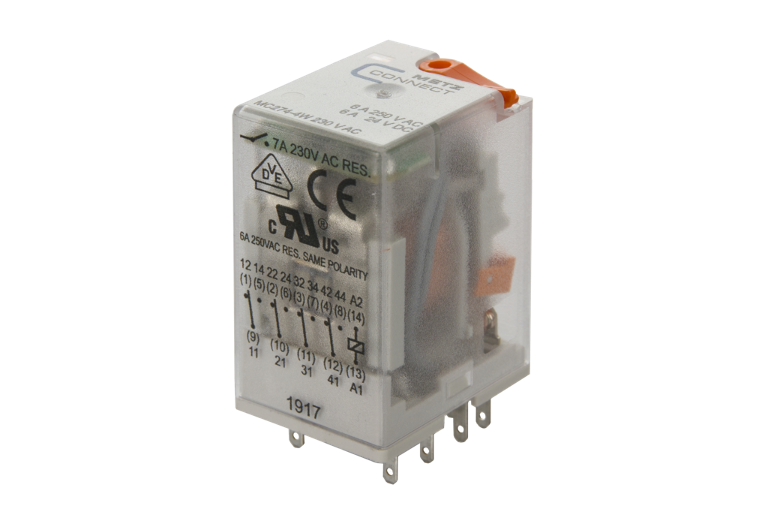

MC274-4W 230 V AC
Description
Compact, pluggable relay for industrial use.

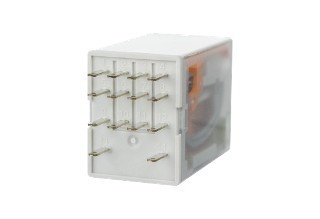

- Socket pins as soldering lugs
- Mechanical switch position display

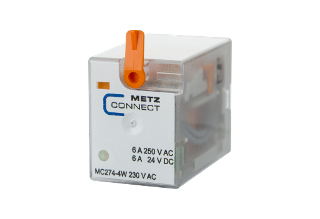

- With manual test button
- Cadmium-free contacts
- LED-Indicator
- Not intended for marketing in North America
Technical Data
General Data
24 V ACor 230 V AC
24 V DC
65 mA
41 mA
8 mA
7 A

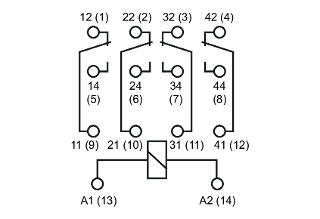

4 changeover contacts (4PDT)
Silver alloy
1500 VA
1 x 107 switching cycles
LED and mechanical
21 x 35.5 x 27.4 mm
35 g
-40 °C to +55 °C
-40 °C to +85 °C
Check US distributor inventory

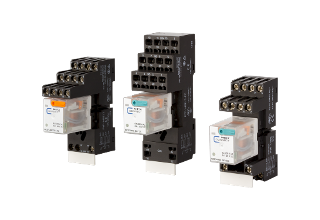

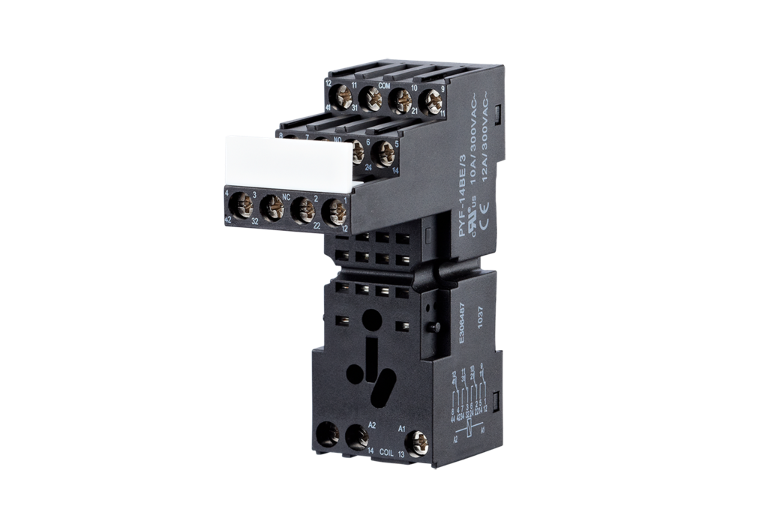

Accessories
Part number
110017051407
4251122194894
Downloads
- Reference list (Reference list - Industrial relays METZ CONNECT)
- Product information
- Data sheet
- ePLAN data (ePLAN Daten 110017051407) - Registration required -
- ePLAN data (ePLAN Daten 110185+110017051407) - Registration required -
- ePLAN data (ePLAN Daten 110178+110017051407) - Registration required -
- ePLAN data (ePLAN Daten 110175+110017051407) - Registration required -
Additional Information
