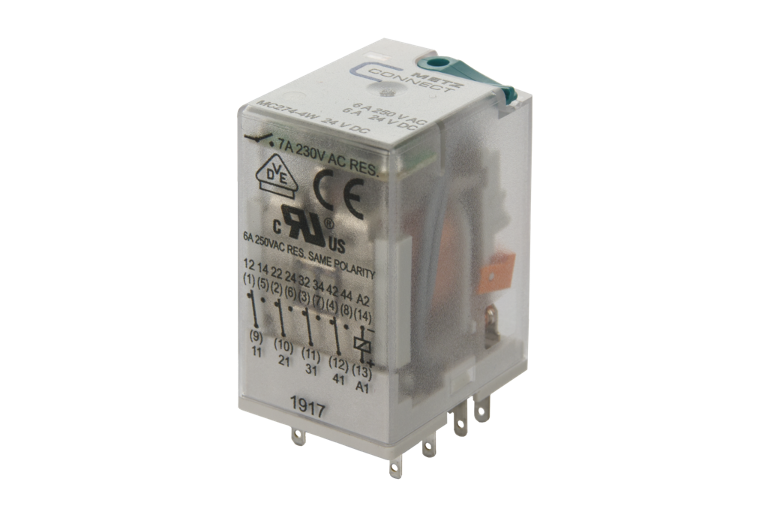

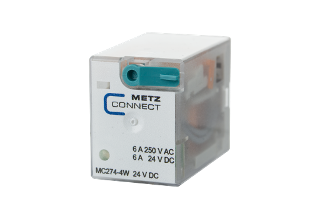

MC274-4W 24 V DC
Description
Compact, pluggable relay for industrial use.

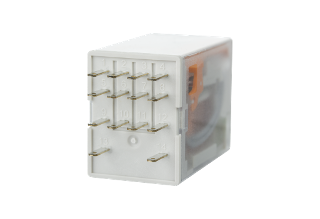

- Socket pins as soldering lugs
- mechanical switch position display

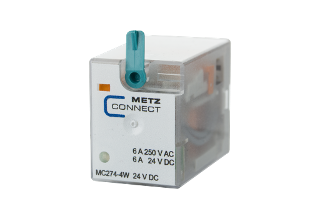

- With manual test button
- cadmium-free contacts
- LED-Indicator
- Free-wheeling diode (only variant DC)
- Not intended for marketing in North America
Technical Data
General Data
24 V ACor 230 V AC
24 V DC
65 mA
41 mA
8 mA
7 A
4 changeover contacts (4PDT)
Silver alloy
1500 VA
1 x 107 switching cycles
LED and mechanical
21 x 35.5 x 27.4 mm
35 g
-40 °C to +55 °C
-40 °C to +85 °C
Check US distributor inventory

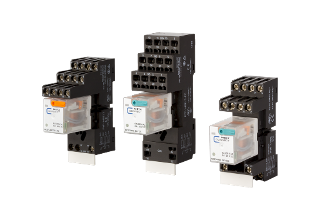

Accessories
Part number
110017251407
4251122194832
