What is the difference between the KRZ-E08 HR and KRZ-E08 HR2?
The stages of the switch (0, 1, 2 / 1, 0, 2), the KRZ-E08 HR is for motors with one running direction and the KRZ-E08 HR2 with two running directions.

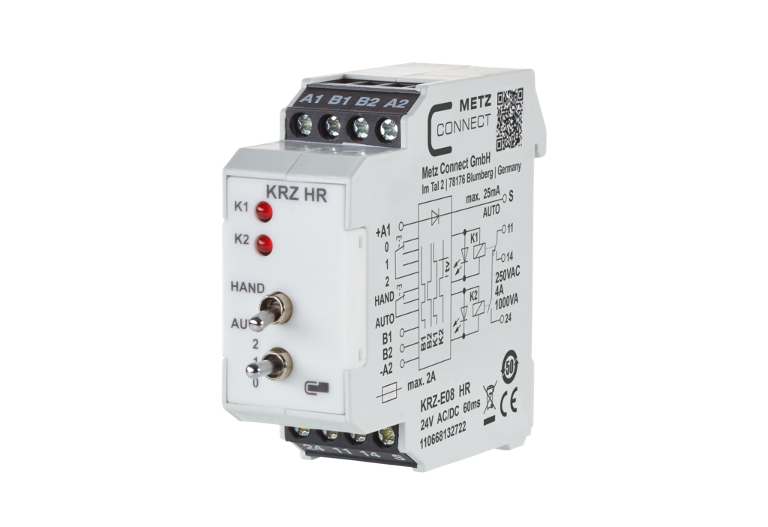

KRZ-E08 HR 24 V AC/DC
Description
The coupling module is designed for two-level motor control.
- Connection with screw type terminal blocks
- Interlocked relays
- Manual control level
Technical Data
General Data
24 V AC/DC
30 mA
1 changeover contact (SPDT)
AgSnO2
250 V AC
4 A
6 A
1200 cycles/h
20 ms
20 ms
1 x 107 switching cycles
1 x 105 switching cycles
2 red LEDs
22.5 x 61.3 x 60 mm
70 g
-20 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
110668132722
4250184122982
