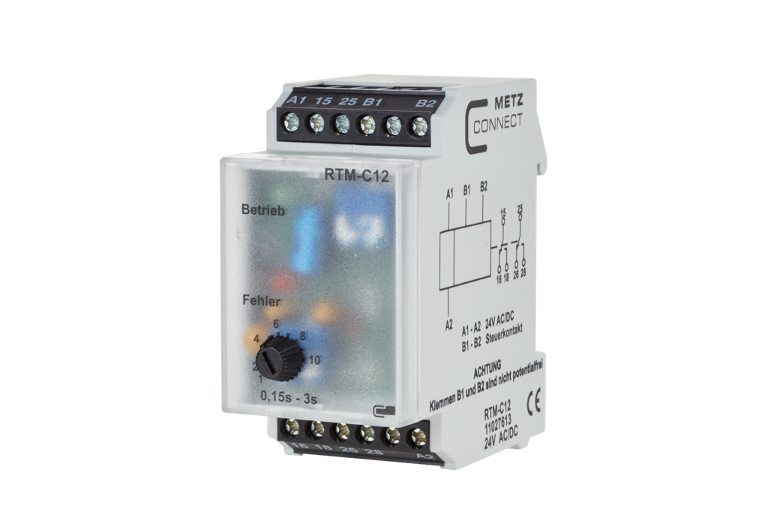

RTM-C12, 24 V AC/DC
Description

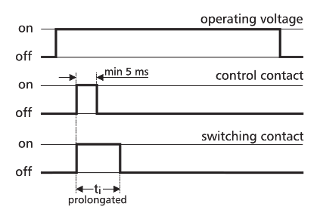

The timer relay is used for pulse prolongation. When the control contact is closed min. 5 ms, the relay is activated and releases after the adjusted pulse time has lapsed. Further control pulses during the pulse time do not have any effect.
- Adjustable pulse length: 0.15 to 3 s
- Connection with screw-type terminals
- Not intended for marketing in North America
Technical Data
General Data
24 V AC/DC
less than or equal to 15 mA
8 A

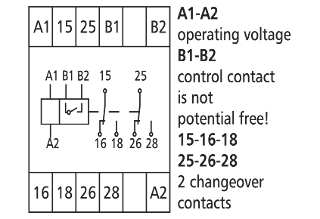

2 changeover contacts (DPDT)
AgNi 90/10 gold plated
20 ms
20 ms
greater than or equal to 20 ms
greater than or equal to 5 ms
3 x 107
1 x 105
2.5 mm² / AWG 14
35 x 69.3 x 60 mm
100 g
-10 °C to +55 °C
-25 °C to +70 °C
IP40 / IP20
Check US distributor inventory
Part number
11027613
4250184121015
Downloads
- 3D-Data - Registration required -
- Mounting note (11027605, 11027613)
- Mounting note (Safety Instructions multilingual )
- Data sheet
- ePLAN data - Registration required -
