KRS-F-E08 HR 24 V AC/DC
Description

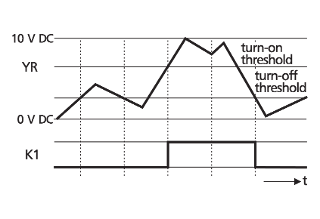

The threshold gate switches units, pumps, fans, burners, etc. As soon as the input voltage reaches the switching threshold, the relay is activated. When the input voltage falls below the switch-off threshold, the relay is released again.
- Connection with spring clamp terminal blocks (push-in)
- with manual control level
- Not intended for marketing in North America
Technical Data
General Data
24 V AC/DC
80 mA
16 mA
3.0 V DC
2.5 V DC
250 V AC
1 x changeover contact (SPDT)
AgSnO2
6 A
1200 cycles/h
1 x 107 switching cycles
1 x 105 switching cycles
Yellow LED
22.5 x 61.3 x 60 mm
70 g
-10 °C to 50 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
11066770
4251394629360
