Submersible electrode TE2

902972

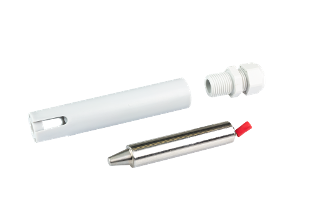

Description

One-pole submersible electrode made of stainless steel with protective polypropylene cover. Applications: Electrically conductive liquids, water supply, wells, pumping stations and dry run protection. To be connected to the level sensor ENW-E12 P/N 110308xx and MR-LD6 P/N 11084413. Contents of the packaging: 1 submersible electrode, 1 protective cover, 1 PG gland

Not intended for marketing in North America

Technical Data

General Data

Material electrode core

stainless steel 1.4305

Protective cover

polypropylene

Dimensions

Length

115 mm

Diameter

20 mm

Max. media temperature

+70 °C

Recommended cable

H07 RN-F, 1.5 mm²

Check US distributor inventory

Accessory of

916647

ENW-E12, 230 V AC

916648

ENW-E12, 24 V AC

906451

MR-LD6 Modbus RTU

910033

MR-F-LD6 Modbus RTU

Part number

Part number:

11032401

EAN:

4251394610238

Downloads

Find contact person

Inquiry

Additional Information

Intelligent system components for control cabinet applications
