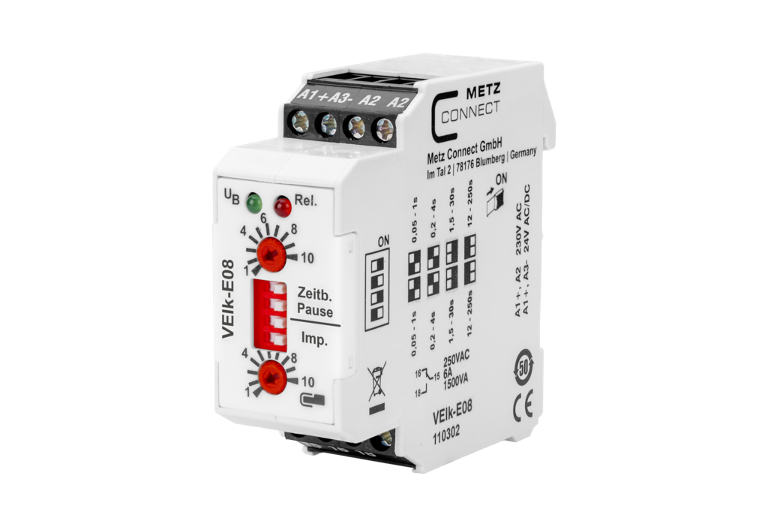

VEIk-E08, 230V AC, 24V AC/DC tp 0.05-250 s, ti 0.05-250 s
Description

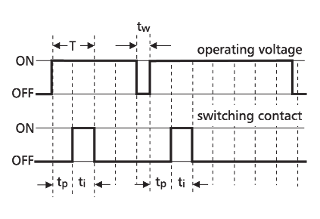

Single pulse generator with separately adjustable pause and pulse time. When the operating voltage is switched on, the output relay remains in the idle position for the duration of the pause time (tp) and then energises for the duration of the pulse time (ti). After briefly (tw) removing the operating voltage, the process is repeated.
- Single pulse generator
- Adjustable pause and pulse time

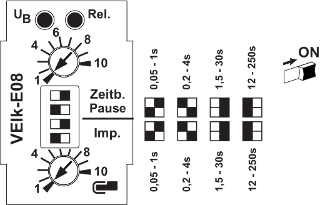

- Adjustable time ranges
- LED indicator
- Connection with screw type terminal blocks
- Not intended for marketing in North America
Technical Data
General Data

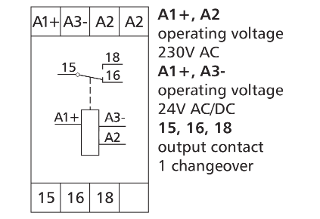

230 V AC / 24 V AC/DC
1 x changeover contact (SPDT)
AgSnO2
250 V AC
6 A
1200 cycles/h
greater than 50 ms
3 x 107
1 x 105
Green and red LED
22.5 x 60 x 60 mm
70 g
-10 °C to 55 °C
-25 °C bis 70 °C
IP40 / IP 20
Check US distributor inventory
Part number
110302
4250184121183
