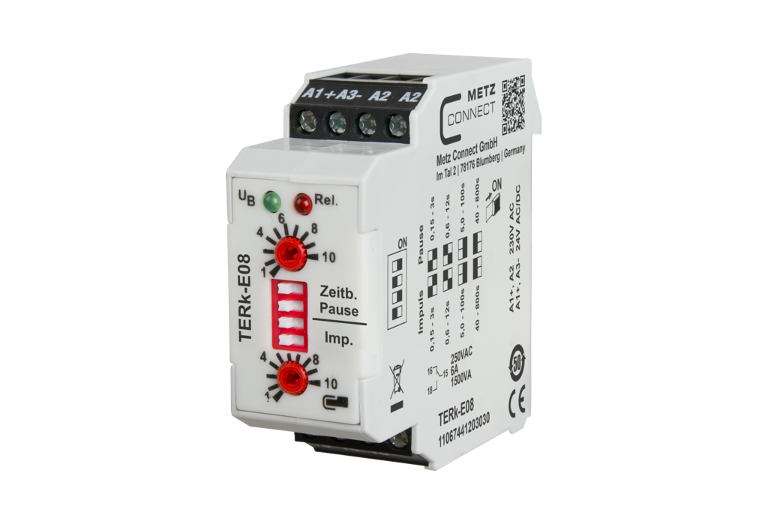

TERk-E08, 230 V AC, 24 V AC/DC tp 0,15-800 s, ti 0,15-800 s
Description

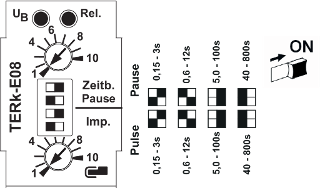

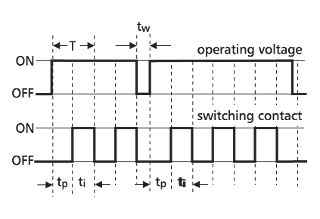

Clock generator with separately adjustable delay and pulse times. The time ranges can be programmed by means of the coding switches incorporated in the front.
- Connection with screw type terminal blocks
- Clock generating
- Adjustable time ranges
- Not intended for marketing in North America
Technical Data
General Data
230 V AC / 24 V AC/DC

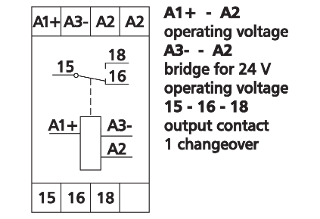

1 x changeover contact (SPDT)
AgSnO2
250 V AC
6 A
1200 cycles/h
greater than 50 ms
3 x 107
1 x 105
Green and red LED
22.5 x 61.3 x 60 mm
70 g
-10 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
11067441203030
4250184123019
Downloads
- 3D-Data - Registration required -
- Mounting note (11067441(2)03030(70), 11067441(2)03031(70), 11067441(2)03130(70), 11067441(2)03131(70))
- Mounting note (Safety Instructions multilingual )
- Data sheet
- ePLAN data - Registration required -
Additional Information
