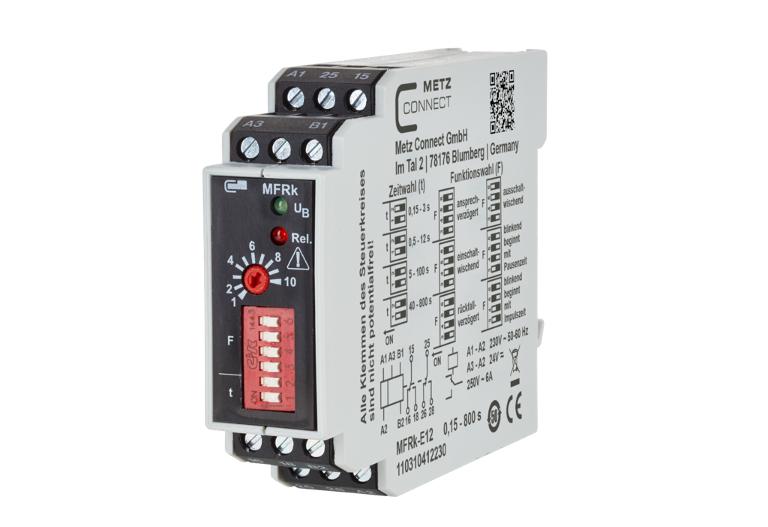

MFRk-E12, 230 V AC / 24 V AC/DC, 0,15-800 s
Description

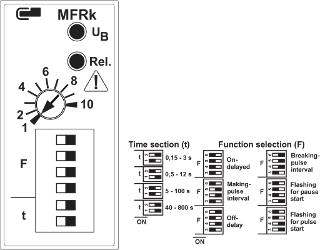

Multi-functional timer relay with incorporated coding switches to set functions. The time is set by means of a linear potentiometer on a relative scale.
- Four adjustable time ranges for each device
- 0.15 to 800 s
- Six selectable functions

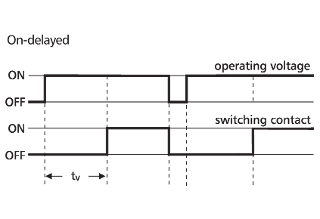

- 1. On-delayed

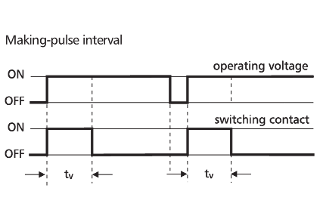

- 2. Making-pulse interval

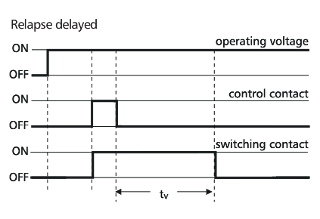

- 3. Off-delay

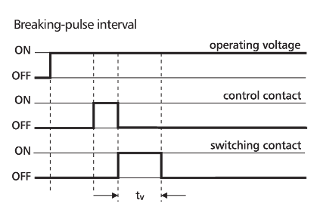

- 4. Breaking-pulse interval

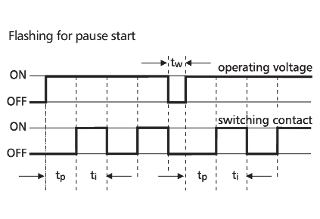

- 5. Flashing for pause start

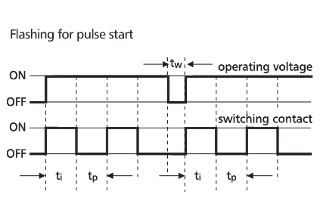

- 6. Flashing for pulse start
Technical Data
General Data
230 V AC / 24 V AC/DC

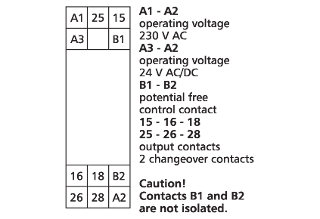

2 changeover contacts (DPDT)
AgNi
250 V
6 A
1200 cycles/h
3 x 107 switching cycles
2 x 105 switching cycles
greater than or equal to 250 ms
2.5 mm2
Green and red LED
22.5 x 75 x 95 mm
150 g
-10 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
110310412230
4250184121268
Downloads
- 3D-Data - Registration required -
- Data sheet
- ePLAN data - Registration required -
Additional Information
