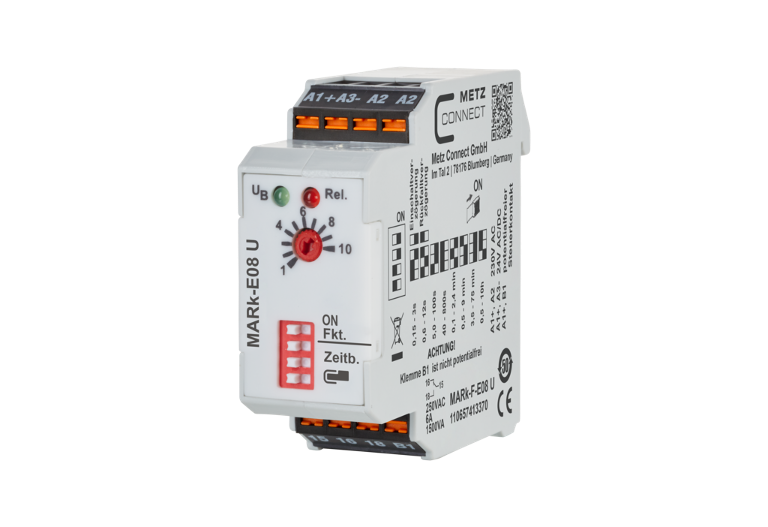

MARk-F-E08 U 230 V AC, 24 V AC/DC
Description

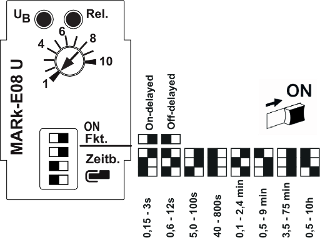

Multifunctional timer relay with incorporated coding switches to set functions. The time is set by means of a linear potentiometer on a relative scale.
- Connection with spring clamp terminal blocks (push-in)
- Eight adjustable time ranges from 0.15 s to 10 h
- Two selectable functions

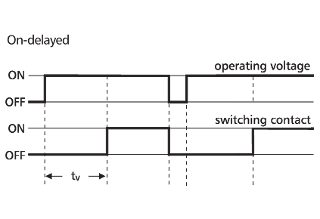

- 1. On-delayed

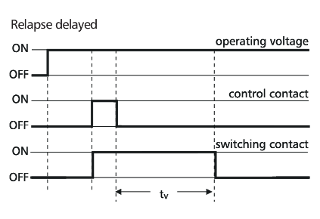

- 2. Off-delayed
Technical Data
General Data
230 V AC / 24 V AC/DC
1 x changeover contact (SPDT)
AgSnO2
250 V AC
6 A
1200 cycles/h
greater than 50 ms
1 x 107
1 x 105
Green and red LED
22.5 x 61.3 x 60 mm
70 g
-10 °C to 55 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
110657413370
4251394629285
Downloads
- 3D-Data - Registration required -
- Mounting note (1106574133(70), 11065727(70))
- Mounting note (Safety Instructions multilingual )
- Data sheet
