MC GC1300 pro22 Cat.7A S/FTP 2x4P LSHF-FR 500 m,
class Dca s1 d1 a1
Description
- 25 GBit / 10 GBit installation cable, duplex
- installation cable Cat.7A AWG 22 S/FTP with wires shielded in pairs

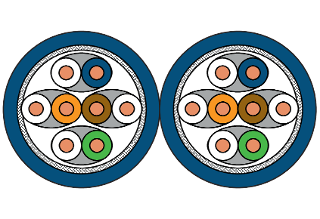

- 2x4 pairs (PiMF)
- pair shield: plastic foil with aluminum coating
- overall shield: tinned copper braid
- outer diameter 15.80 - 16.40 mm
- color of the cable jacket: blue
- coupling attenuation greater than or equal to 85 dB
- electrical data tested up to 1500 MHz
- GHMT Cat.7A PVP certified
- applicable standards: EN 50173-1; ISO/IEC 11801; EN 50288-9-1 and IEC 61156-5
- cable jacket: LSHF-FR (LSOH-FR)
- flame-retardant to IEC 60332-1; IEC 60332-3-24; IEC 60754-2; IEC 61034 and IEC 61156-7
- fire behaviour: Class Dca s1 d1 a1 acc. to EN 50399 (classification acc. to EN 13501-6)
- Delivery units: on drum - sold by meter, 500 m/1640 ft and 1000 m/3280 ft, as cable ring - 100 m/ 328 ft
Check US distributor inventory
Accessories
Part number
1308427B34143
4251394604008
Downloads
- Brochure (Cables and lines)
- Brochure (C6Amodul and C6Amodul Keystone)
- Brochure (Cable Connector Class FA)
- Brochure (25G System - The RJ45 building cabling with future)
- Brochure (Fiber In The Home - Your way to fast Internet)
- Certificate (GHMT PVP - GC1300 Installation cable - Certificate)
- Certificate (GHMT Type Approval - 25G Channel 1.25 GHz - Certificate)
- Certificate (GHMT Type Approval - 25Gmodul 90 m PL Class EA - Certificate)
- DoP manufacturer declaration (DoP 1308427B3414x)
- DoP manufacturer declaration (DoP 1308427B34143)
- Data sheet
