OpDAT outdoor cable 4x12 OS2 class Fca
Description

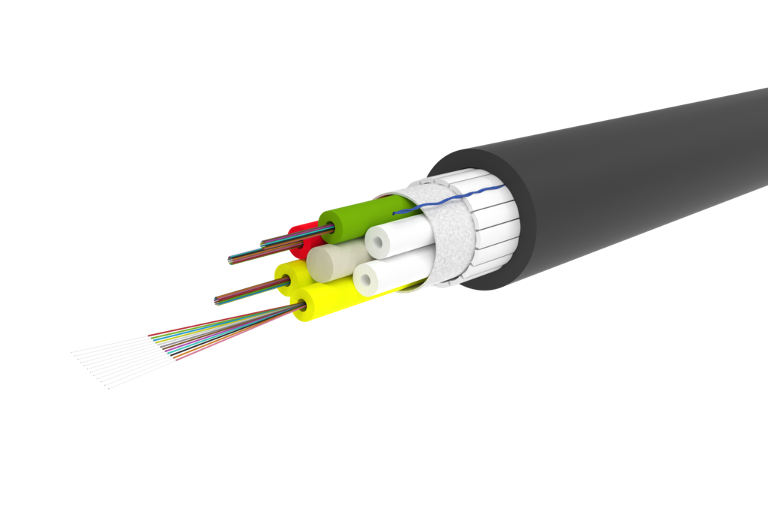

- OpDAT outdoor cable
- installation cable A-DQ(ZN)B2Y

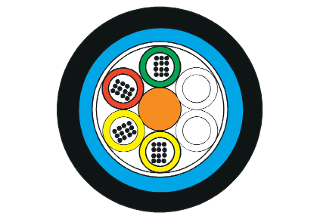

- outdoor cable with stranded loose tube (48 fibres)
- cable structure: filled loose tube
- cable diameter with stranded loose tubes: Ø 11.0 mm
- stranded loose tubes: loose tubes grouped around a glass fiber reinforced plastic stick with a dia. of 2.5 mm
- bend insensitive fiber
- UV-resistant, metal-free, lon gitudinally waterproof, tensile strength and rodent repellent
- cable jacket: LLDPE
- strain relief: longitudinally waterproof wrapping, glass roving elements
- cable for laying in ducts or directly in the ground
- applicable standards: ISO 11801-1, EN50173-1:2002, IEC 60794-1
- all available variants can be created with the configurator
Check US distributor inventory
Part number
150A04890120M
4251394653877
