REGplus IP20 C6_Amodul 270°M

Description

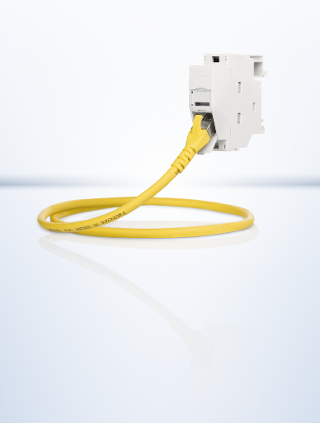

termination unit for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for home and industrial installations

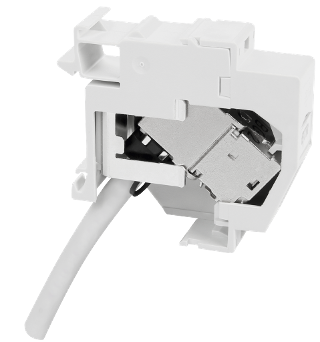

equipped with C6_Amodul 270° RJ45 individual module
cable feed 45° from the bottom, plug direction 45° downwards
certified to GHMT Cat.6_A re-embedded PVP
Cat.6_A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
compliance with class E_A up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
tested: component up to 600 MHz, link up to 800 MHz
suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
easy to install connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)

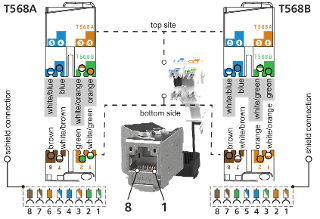

conductor assignment to T568A and T568B is directly printed on the stuffer cap
width of 1HP allows mounting up to 12 REG plus in standard electrical distribution panels
When mounted as a device of protection class I, the equipotential bonding is realized directly over the top hat rail by means of an integrated equipotential plate. This has to be connected to the equipotential bonding of the building by means of a bonding terminal.
A cover protects the module against direct contact. If mounted in distributor panels with protective insulation, protection class II is guaranteed. In this case, it is necessary to remove the equipotential bonding spring.
integrated dust protection cover (also colored)
