OpDAT Wall-mounted distributor S 12xLC-D APC OS2 splice
Description
- distributor for universal use in floor cabling or as a building distribution point in the equipment room

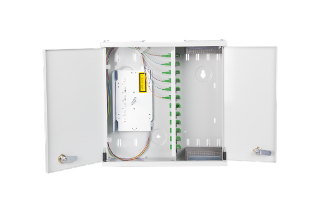

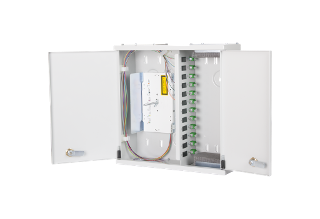

- equipped with LC-D APC-adapters and pigtails
- pigtails inserted and stripped in standard splice tray with crimp splice holders
- unused openings are closed by blind plugs

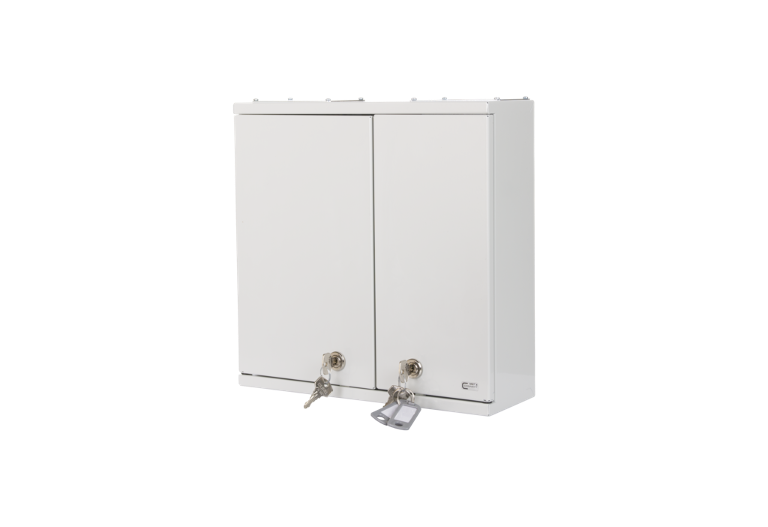

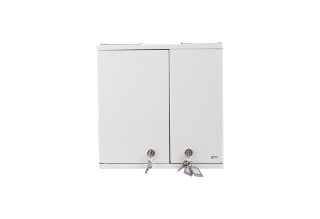

- wall-mount housing with two lockable swing doors, two different locks to separate network and building cabling
- easy, space saving wall mounting
- easy access possibilities and a secure routing of the pigtails

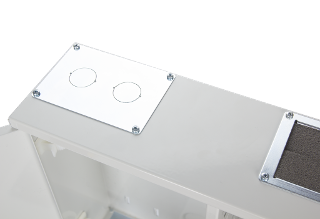

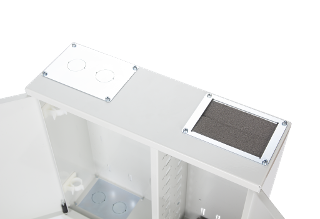

- four cable infeeds (scope of supply): 2x for M20/PG16, 2x for patch cords
- variants: size S: 305x300x107 mm or size M: 405x400x107 mm
Check US distributor inventory
Accessories
Part number
1503297612-E
4251394600970
Downloads
