E-DAT Industry IP67 V1 2 port metal surface mount housing
Description
- IP67 wall outlets for flexible connection of networks in industrial areas
- 2 complete ports with flange covers and cable glands
- with the output directions pointing straight downwards (with cable feed from above) or output direction to right (with cable feed from above)
- metal flange with bayonet to ISO/IEC 24702 and IEC 61076-3-106 standards, var. 1
- unequipped, without inserts
- for wall and floor mounting
- aluminum housing made of AL-Si 12
- solid powder coating in RAL 7001

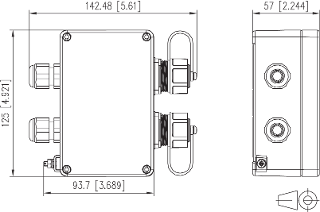

- dimensions, 2 ports: 124 x 78 x 57 mm (without flanges and cable glands)

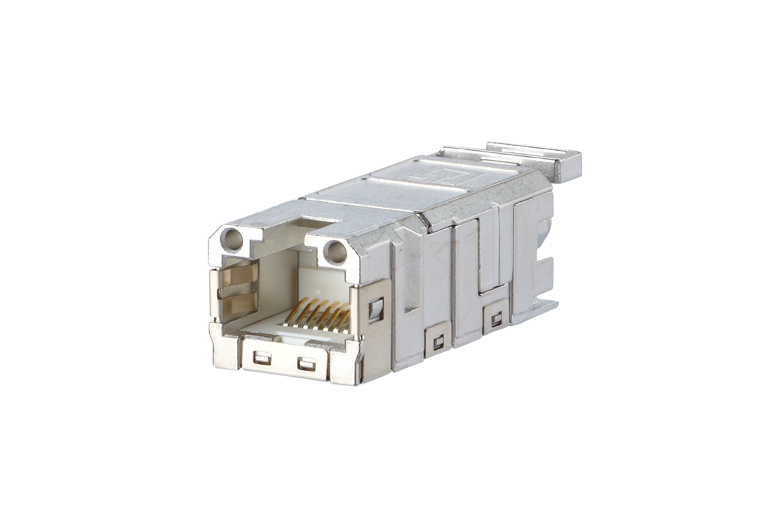

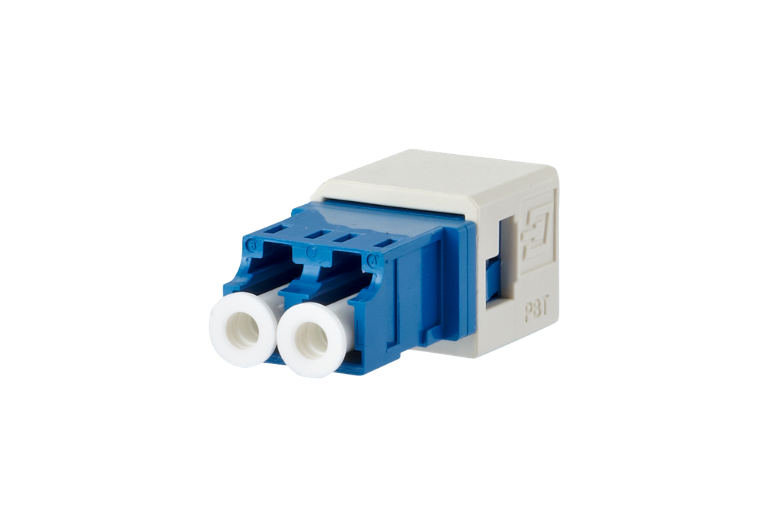

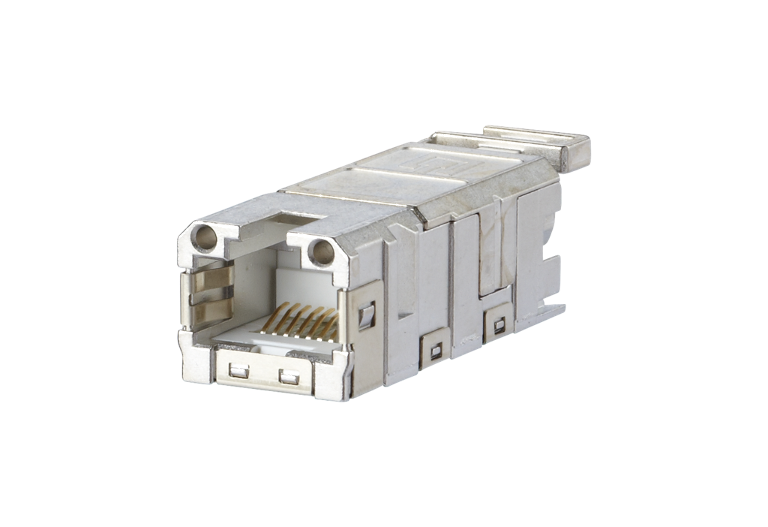

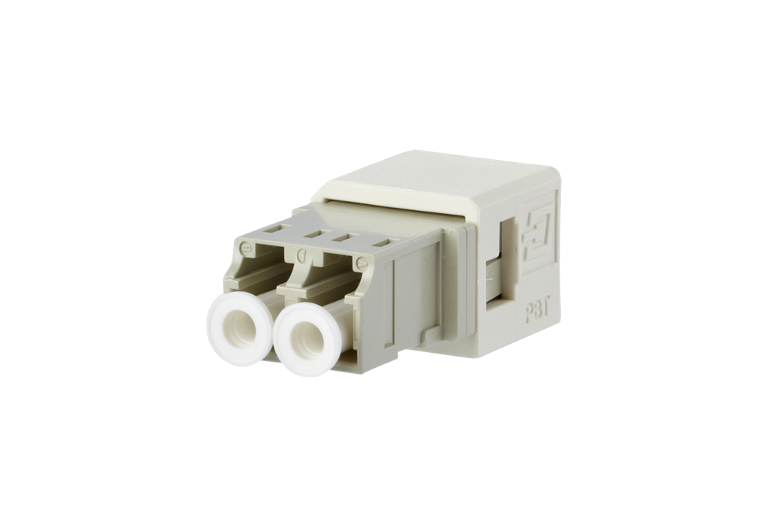

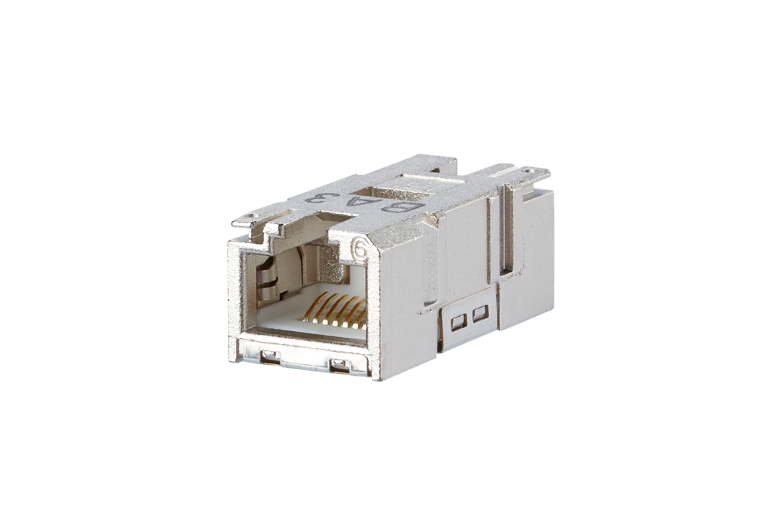

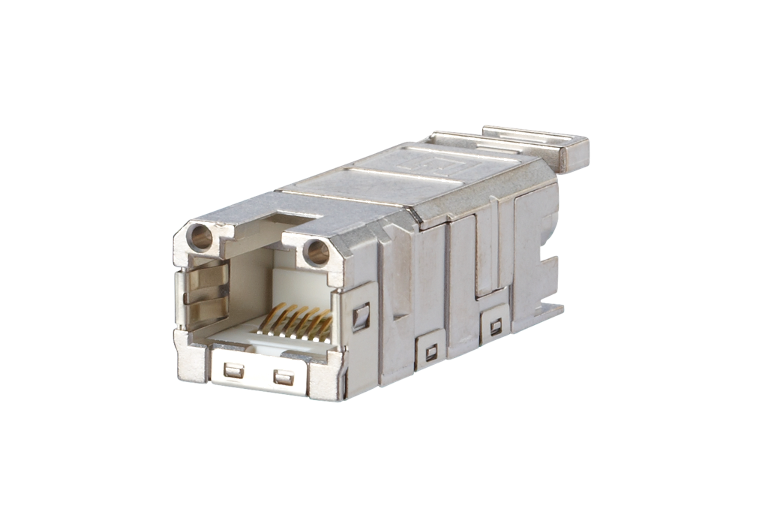

- matching inserts: E-DAT Industry RJ45 field jack insert (T568A, T568B or Profinet), E-DAT Industry RJ45 coupler insert, E-DAT Industry USB coupler insert, OpDAT Industry SC-RJ/2SC coupler insert or OpDAT Industry LC-D coupler insert
Check US distributor inventory
Accessories
Part number
1401010620ME
4250184116479
Downloads
- 3D-Data - Registration required -
- Mounting note
- Data sheet
