OpDAT Industry IP67 V14 bulkhead normative mounting
+ LC-D MM adapter insert
Description
- flange with push-pull-lock acc. to ISO/IEC 24702 and IEC 61076-3-117 var. 14
- fiber optic cable adapter made of plastic
- slotted zirconium oxide ceramics sleeve (ZrO2) for single mode applications
- slotted metal sleeve (Ph-Br) for multi mode applications
- compliance with EN 50173-1 or ISO/IEC 24702 with regard to the limits for insertion loss
- flame-retardant and halogen-free plastic housing and adapter dust covers

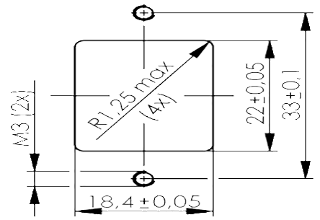

- easy to mount due to standard fastening by means of two screws (M3)
- mounting from the front
- industry-compatible metal housing with improved durability
- flammability class as per UL 94V-0
- improved resistance to chemical substances
- variants: LC-D and SC-RJ/2SC - blue (SM) and beige (MM)
Check US distributor inventory
Accessories
Part number
1402393320ME
4250184123644
Downloads
- 3D-Data - Registration required -
- Data sheet
- ePLAN data - Registration required -
