E-DAT C6 24x8(8) 1RU LSA Cat.6 patch panel
Description
- 19 inch 1RU frame made of silver anodized aluminum with 24 individually shielded RJ45 jacks
- certified to GHMT Cat.6 12C-de-embedded
- compliance with class EA Channel-Link acc. to ISO/IEC 11801-1, DIN EN 50173-1
- tested: Channel-Link up to 500 MHz
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
- wire pairs can be led to the LSA terminal without untwisting the pair

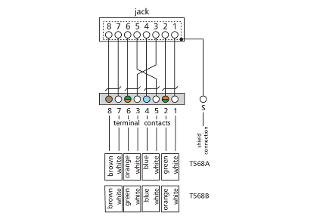

- connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 22-24) conductor colors marking to TIA/EIA 568A
- optional strain relief using cable ties
- modules connected by means of grounding rail
Check US distributor inventory
Accessories
Part number
130855-E
4250184104124
Downloads
- 3D-Data - Registration required -
- Certificate (GHMT Type Approval - E-DAT C6 24x8(8) - E-DAT C6 6 Port - Cat.6 Certificate)
- Mounting note
- Data sheet
