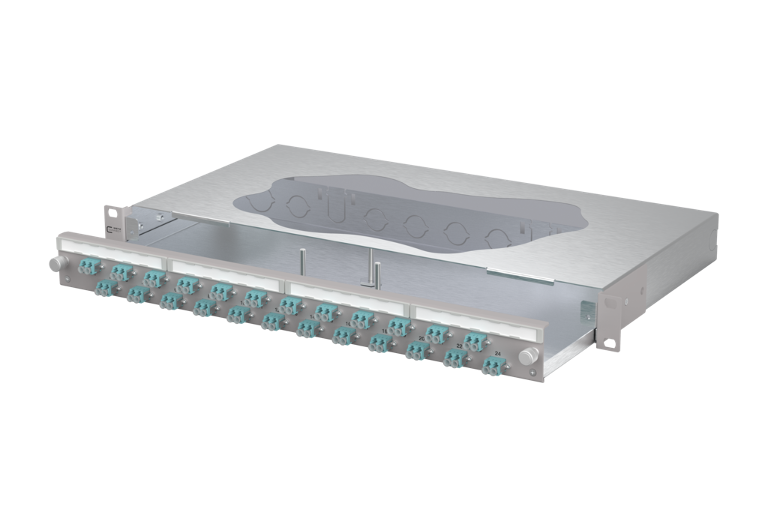

OpDAT slide2 patch panel VIK
24xLC-D OM3
Description
- 19-inch, 1U patch panel with pull-out drawer
- Equipped with 24xLC-D couplers
- Offset coupling arrangement for easy handling
- Tool-free metal bayonet catch for locking the drawer
- Drawer can be tilted and completely removed for easier installation (pull-out stop)
- Depth adjustable by 30 mm
- Front panel with labelling field
- Front panel powder-coated in gray RAL 7035
- Several possibilities for cable entry on the back: 6xM20; 2xM25; 2xVIK installation cut-outs
- Prepared for the installation of pre-assembled cables
Check US distributor inventory
Accessories
Part number
1504607724-E
4251394678634
