OpDAT FASTTM Hybrid connector kit SC PC OM3/OM4
100 pieces for buffered fibres incl. tool
Description
- Field-attachable fiber optic connector for multimode technology
- With hybrid technology: refractive index gel plus Opto-Elast guarantee very good and constant optical values.
- No polishing, no gluing during assembly on site.
- Simple, easy to learn, fast and cost-effective installation in less than two minutes.
- Available with connector types LC and SC.
- Lug kits for FO fibers with Ø 0.25 and Ø 0.9 mm
- Plug kits for fibre optic cables with Ø 2.0 and Ø 3.0 mm
- The plug can be assembled up to three times.
- Every plug has a serial number, so that traceability is possible at any time.

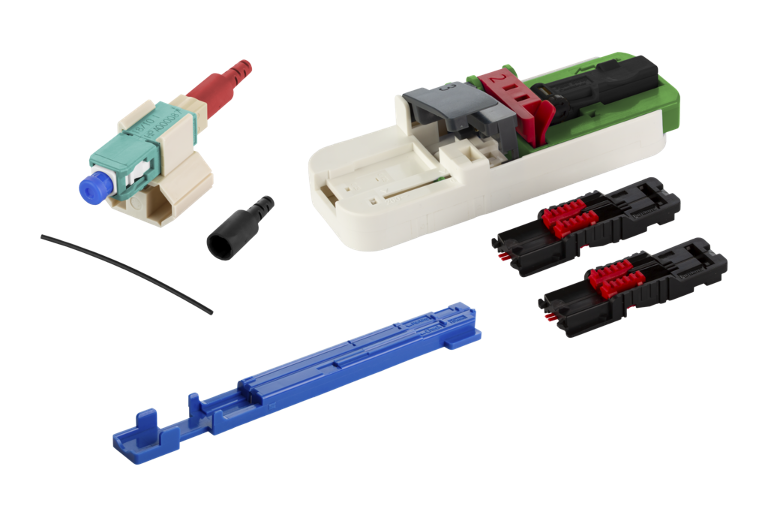

- Included in the scope of delivery depending on the variant:
- A maintenance-free cutting device (cleaver), designed for a diagonal cut. The cleaver can be used up to 200 times.
- A cable assembly kit for easy cable assembly
- A fiber guide for easy insertion of the fiber into the connector
- Fields of application: for FTTH and FITH connections, repairs in the field and in areas which are difficult to access or limited in space and for direct mounting to components
- Versions for fibers: 10 pieces without tools / 20 or 100 pieces with Cleaver and fibre guide
- Variants for cables: 10 pieces without tools / 20 or 100 pieces with Cleaver, cable assembly set and fibre guide
Check US distributor inventory
Accessories
Part number
1509MAEO010C-E
4251394676470
