OpDAT VADT splice 4xSC APC OS2

859508
916754
Description

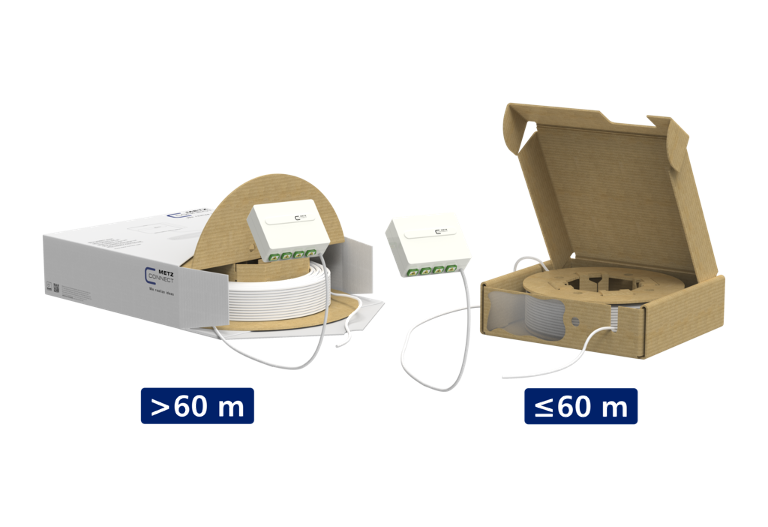

  • compact fiber optic termination unit for flush mounted outlets or cavity wall boxes
  • Box ready for installation, pre-terminated with singlemode indoor cable and equipped with adapters including laser protection for the connection of up to four fiber optic patch cables.
  • The second cable end is open to be inserted, pulled in or blown into empty tubes. Suitable for splicing or for mounting field attachable fiber optic connectors (OpDAT FAST® Hybrid).
  • cable easy to mount on carton drum
  • Two cable types available:
  • Mini Breakout Cable Compact, white, Ø 4.5 mm
  • FITH cable, white, Ø 2.3 mm
  • single mode fiber OS2, E9/125 µm, bend insensitive according to ITU-T G.657.A, compatible to G.652.D
  • supplied with fixing material
  • color box pure white (similar to RAL 9010)
  • cable lengths: 5 to 100 m in 5 m steps
  • (replace XX in the part number by the length, for example 05=5 m, A0=100 m)
  • all available variants can be created with the VADT configurator
