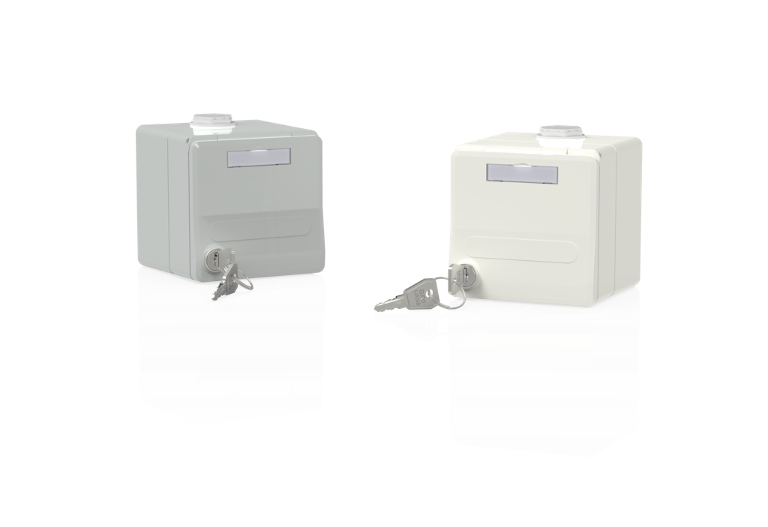

IP44 module surface-mounted housing
Description
- With two keys and keyed alike lock (same locks and keys), housing flap can be sealed
- Protection class IP44, protected against splashing water on all sides and the ingress of solid objects larger than 1 mm.
- Module cut-out: MC module; Keystone
- Two individual modules of your choice (RJ45, fibre optic LC, fibre optic ST, KOAX) available as accessories.
- Hinged cover closes completely, even when patch cables are plugged in
- Hinged lid can be locked in open position
- Housing made of UV weather-resistant and break-proof thermoplastic PC/ASA
- With clearly visible labelling area
- Cable feed for one or two cables can be rotated 90 degrees.
- Colors: pure white (RAL 9010), grey (RAL 7035)
- Cable glands available as accessories
- Delivery without modules and screws for surface mounting.
Check US distributor inventory
Overview of variants
Description
Color
Cut-out
Part number
Accessories
IP44 surface-mounted module housing with hinged cover
and lock, pure white, 2 port unequipped for MC module
and lock, pure white, 2 port unequipped for MC module
pure white - RAL 9010
Module
1309470002-I
IP44 surface-mounted module housing with hinged cover
and lock, gray, 2 port unequipped for MC module
and lock, gray, 2 port unequipped for MC module
light gray - RAL 7035
Module
1309470003-I
IP44 surface-mounted module housing with hinged cover
and lock, pure white, 2 port unequipped for Keystone
and lock, pure white, 2 port unequipped for Keystone
pure white - RAL 9010
Keystone
1309470002KI
