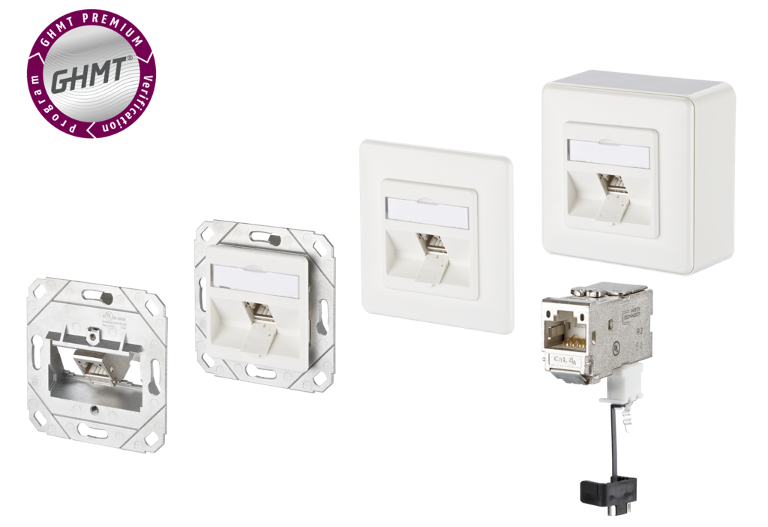

Wall outlets C6_Amodul 270°

Description

Modular wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The very robust, nickel-plated zinc die-cast module, which consists of only two parts, can be connected by the installer very easily and in a very short time without any special tools. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality of the individual modules with various certificates. The wall outlets are supplied in retail-friendly, separable cardboard packaging with 10 pieces each.

variants, mounting type: AP, UP, UPk, UP0
variants, number of ports: 1, 2, 3

Technical Data

General Data

Fields of application:

structured building cabling
office areas
Distributed building services

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

wall outlet

Shielding:

shielded

Transmission technology:

Copper

Wiring:

T568A, T568B

Modularity:

yes

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

HDBaseT:

yes

SAT-IP:

yes

AVoverIP:

yes

Transmission rate up to 100 MBit (Fast Ethernet):

IEEE 802.3bw

Transmission rate up to 1 GBit (Fast Ethernet):

IEEE 902.3ab

Transmission rate up to 10 GBit:

IEEE 802.3an

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45-jack

Number of ports interface 2:

1, 2, 3

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

Cable sheath diameter [inch min.]:

0.197 in.

Cable sheath diameter [inch max.]:

0,394

Module plug-in direction:

45° downwards

Ground connection:

Via M4 thread (screw not included!)

Electrical/optical characteristics

Current carrying capacity:

max. 1 A at 60 °C

Rated voltage:

max. 60 V DC

Rated voltage UL:

max. 56.5 V DC

Contact resistance:

max. 20 mOhm

Through resistance:

max. 200 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

max. 1000 V DC

Dielectric strength conductor-conductor, peak value (secondary) [V AC]:

max. 1.000 V AC

Dielectric strength conductor-shield [V DC]:

max. 1500 V DC

Dielectric strength conductor-shield, peak value [V AC]:

max. 1500 V AC

Mechanical data

Cut-out:

Module

Insertion and withdrawal force:

max. 30 N

Life - Number of mating cycles:

min. 750

Position/mounting of latch
standard installation position:

top

strain relief:

latching clip

Materials and material properties

Material - Supporting frame:

GD-Zn

Material - Module support:

GD-Zn

Material - Contact:

Spring steel

Material - Contact finish:

AuCo

Material - Shield:

CuSn6

Halogen free:

yes

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

70 °C

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

IP class:

IP20

Certifications

GHMT PVP:

yes

Check US distributor inventory

Overview of variants

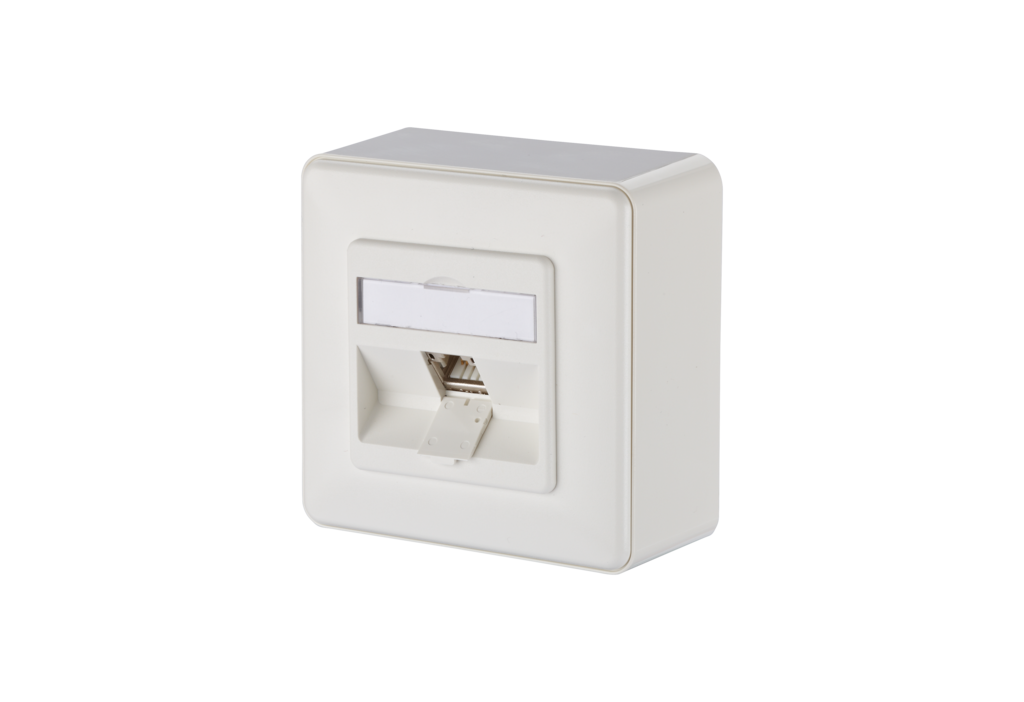

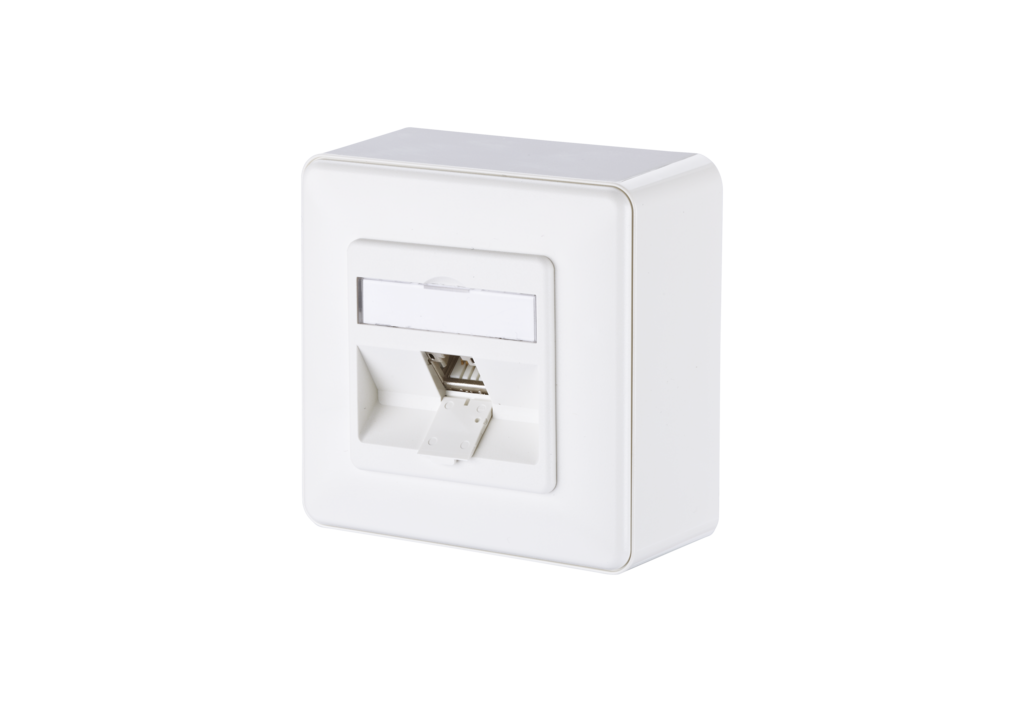

C6_Amodul 1 port 270°M AP pure white

Mounting style: AP

Number of ports: 1

Flush-mounted / cavity wall cups suitable: on mug

Color: pure white - RAL 9010

Part number: 130B12D10002-E

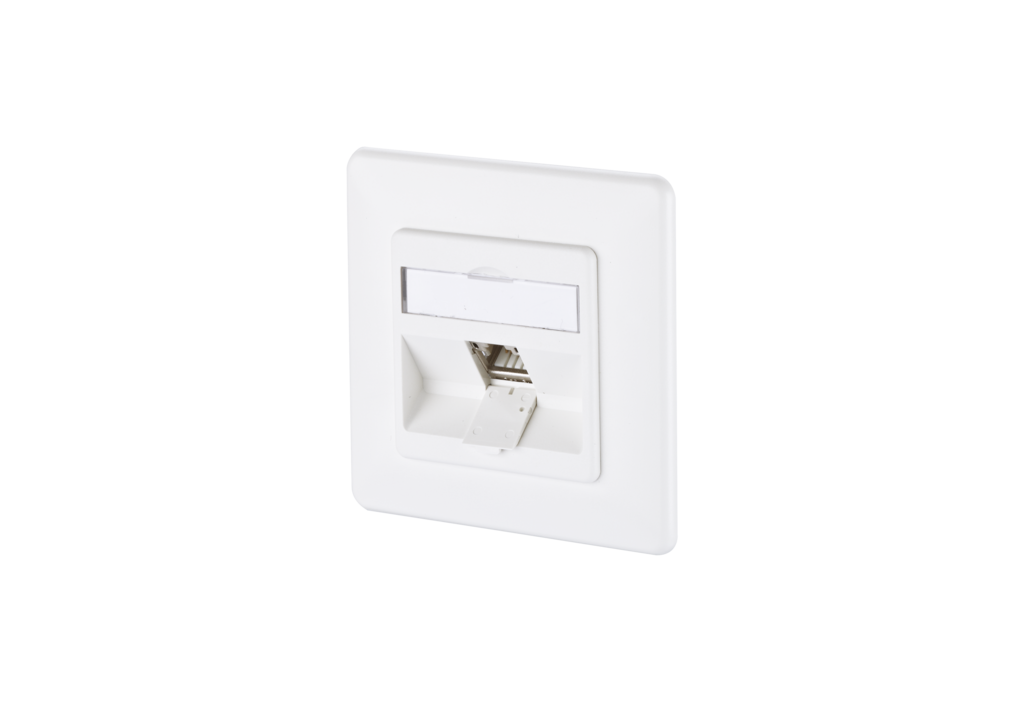

C6_Amodul 1 port 270°M UP pure white

Mounting style: UP

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130B12D11002-E

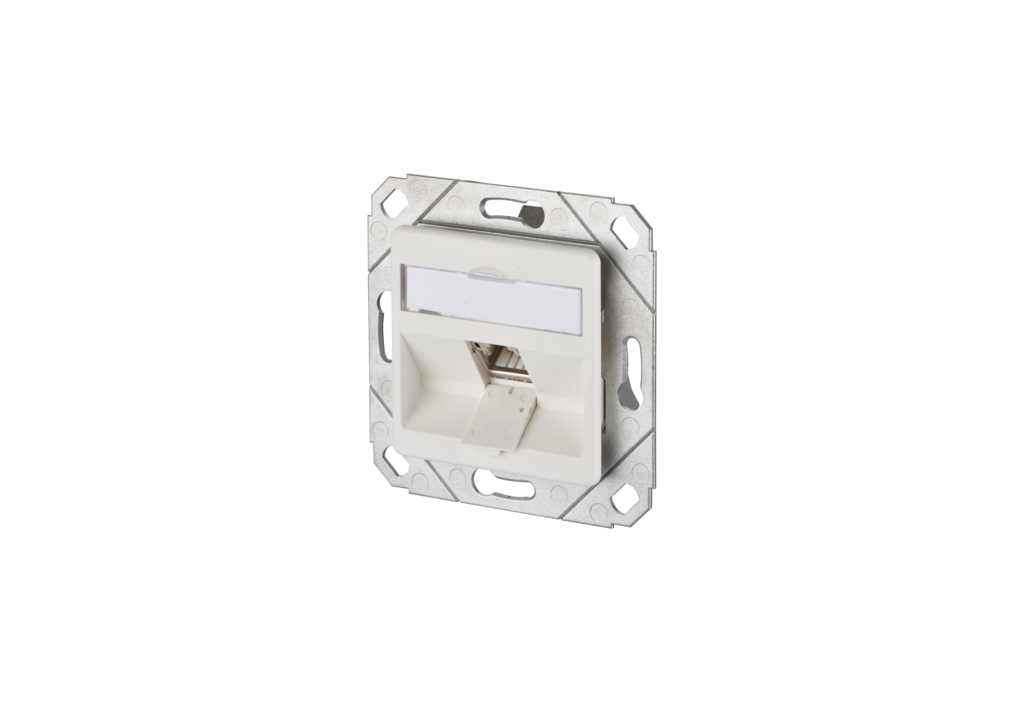

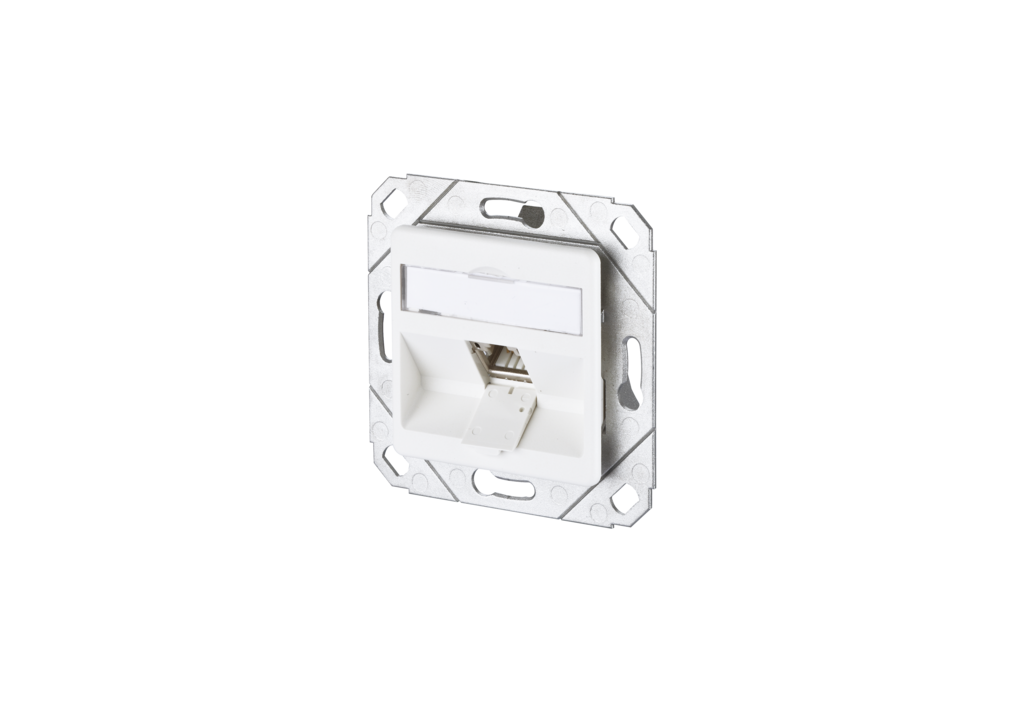

C6_Amodul 1 port 270°M flush mounted trunking installation
pure white

Mounting style: UPk

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130B12D11102-E

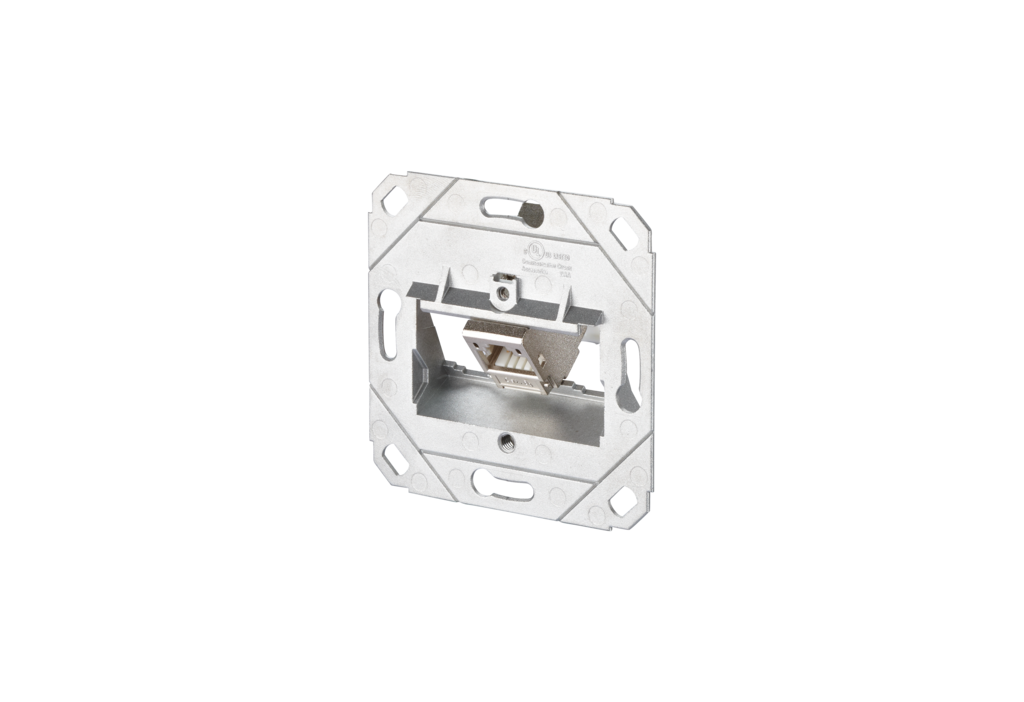

C6_Amodul 1 port 270°M flush mounted without cover

Mounting style: UP0

Number of ports: 1

Flush-mounted / cavity wall cups suitable: yes

Color: metallike

Part number: 130B12D11200-E

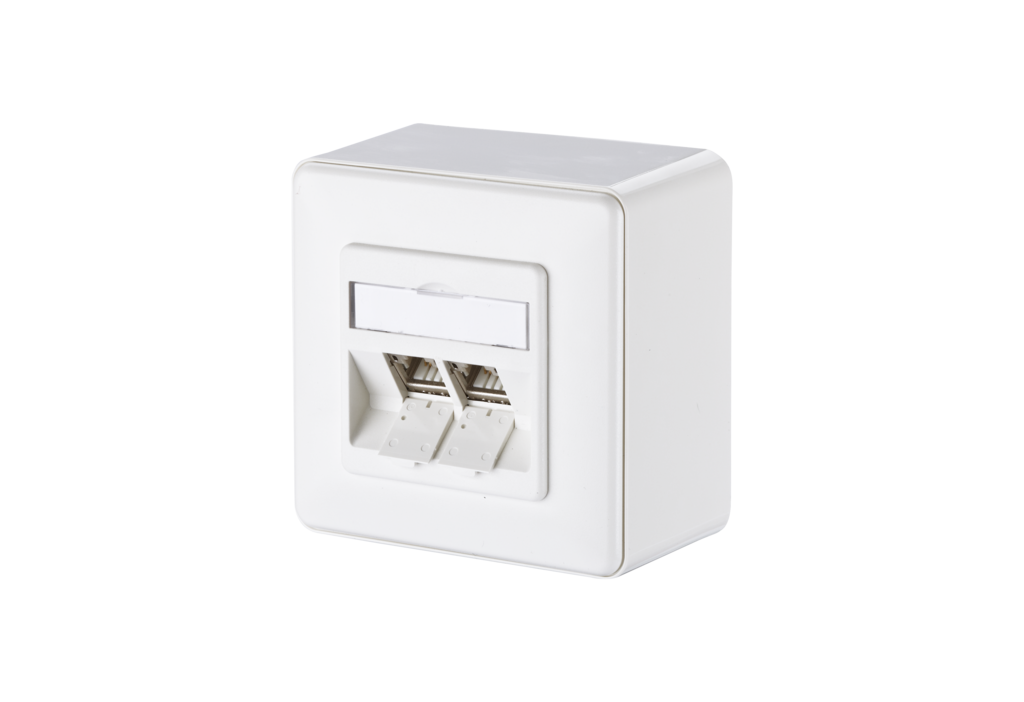

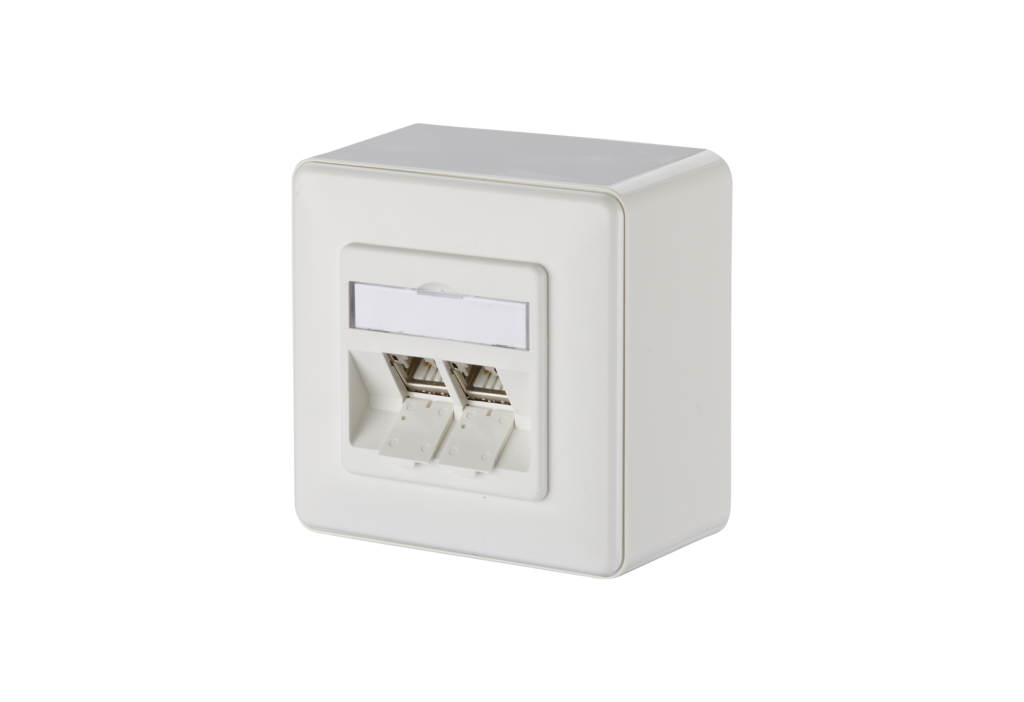

C6_Amodul 2 port 270°M AP pure white

Mounting style: AP

Number of ports: 2

Flush-mounted / cavity wall cups suitable: on mug

Color: pure white - RAL 9010

Part number: 130B12D20002-E

C6_Amodul 2 port 270°M UP pure white

Mounting style: UP

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130B12D21002-E

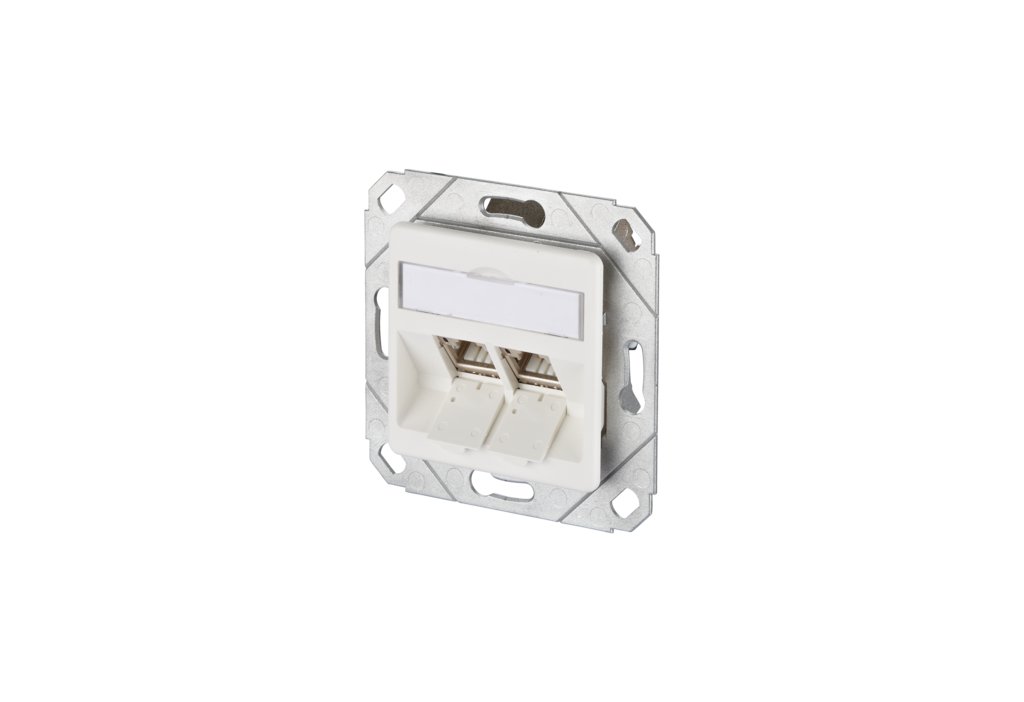

C6_Amodul 2 port 270°M flush mounted trunking installation
pure white

Mounting style: UPk

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130B12D21102-E

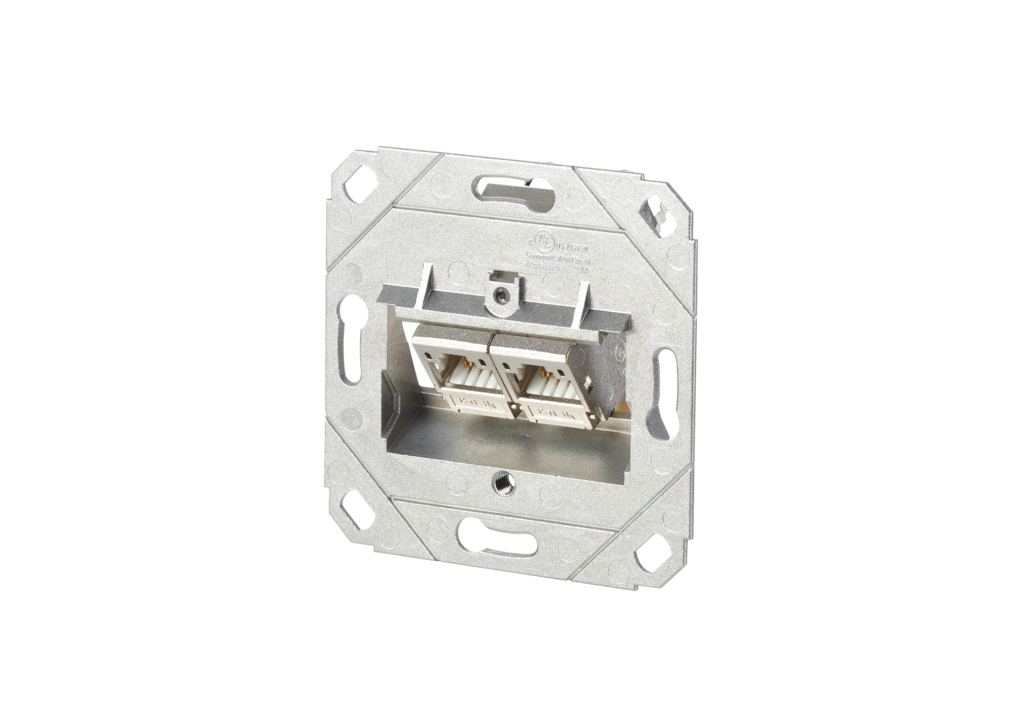

C6_Amodul 2 port 270°M flush mounted without cover

Mounting style: UP0

Number of ports: 2

Flush-mounted / cavity wall cups suitable: yes

Color: metallike

Part number: 130B12D21200-E

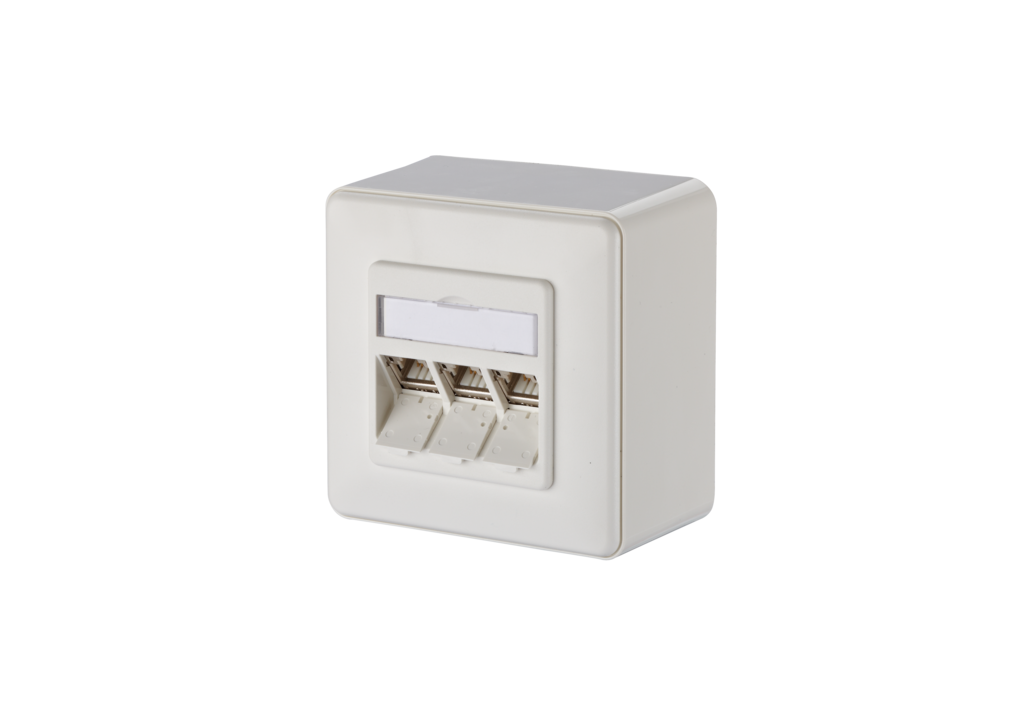

C6_Amodul 3 port 270°M AP pure white

Mounting style: AP

Number of ports: 3

Flush-mounted / cavity wall cups suitable: on mug

Color: pure white - RAL 9010

Part number: 130B12D30002-E

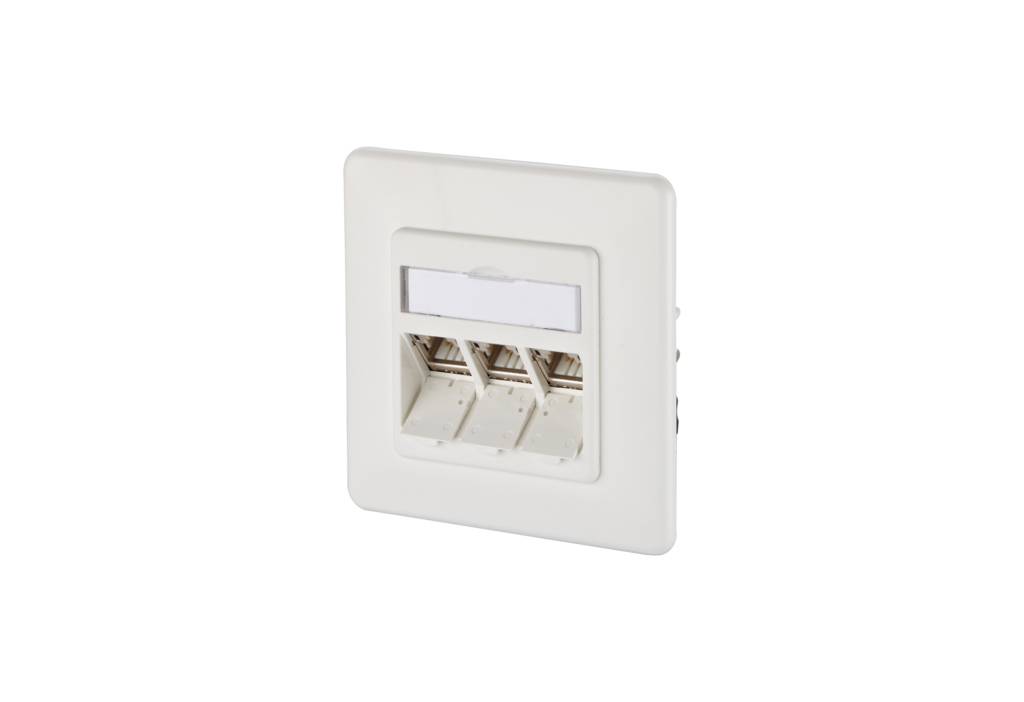

C6_Amodul 3 port 270°M UP pure white

Mounting style: UP

Number of ports: 3

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130B12D31002-E

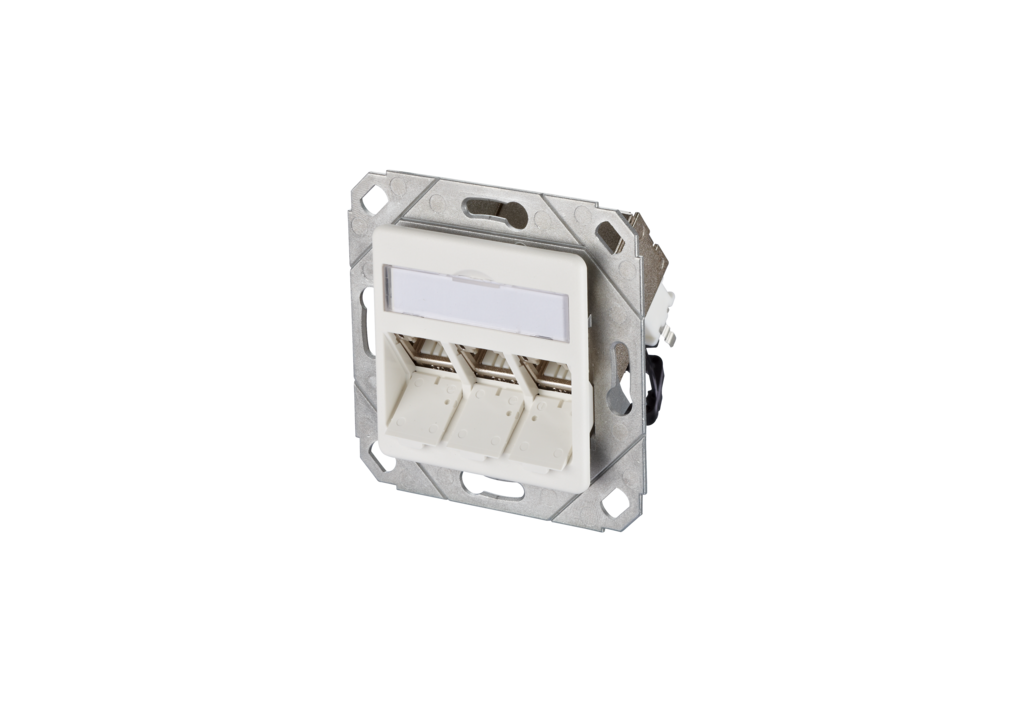

C6_Amodul 3 port 270°M flush mounted trunking installation
pure white

Mounting style: UPk

Number of ports: 3

Flush-mounted / cavity wall cups suitable: yes

Color: pure white - RAL 9010

Part number: 130B12D31102-E

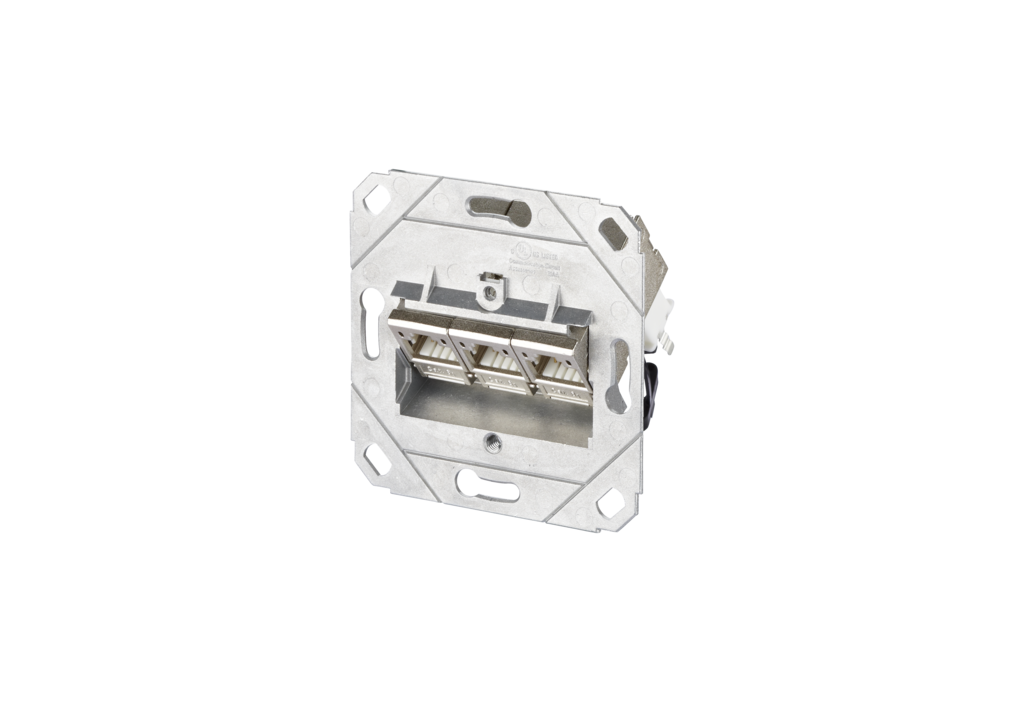

C6_Amodul 3 port 270°M flush mounted without cover

Mounting style: UP0

Number of ports: 3

Flush-mounted / cavity wall cups suitable: yes

Color: metallike

Part number: 130B12D31200-E
