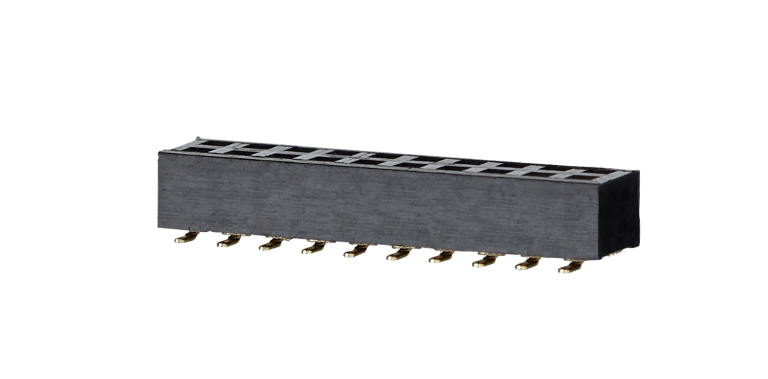

FM20BxxVBDN

954948

Description

female connector, SMT solderable
centerline 1.27 mm, direction of connection vertical 0°
closed ends
color black
Tape & Reel packaging possible
dual rows

Technical Data

General Data

min. number of poles:

2

max. number of poles:

40

Protection category:

IP00

Material

insulating material:

PA6

contact material:

CuSn

Glow-Wire Flammability GWFI:

-

Glow-Wire Flammability GWIT:

-

Contact surface:

Ni + Ag

contact pin material:

CuSn

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

FM20B

VBDN

06 10

Pole sizes only available on demand

Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
