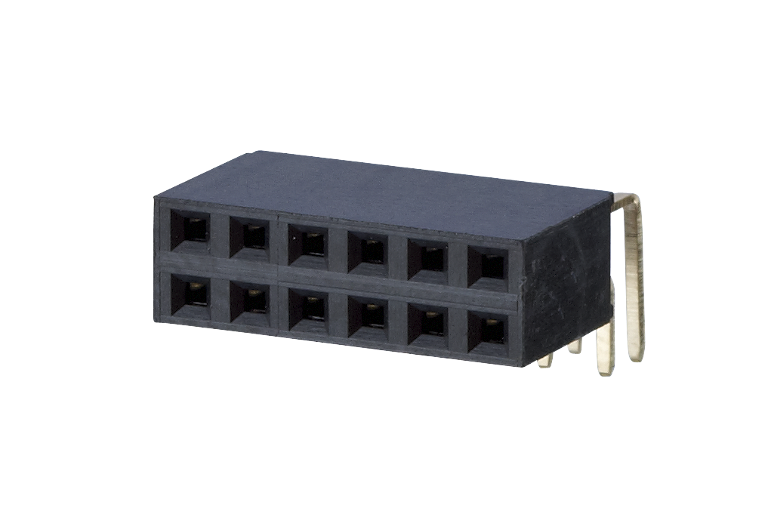

FR20CxxHBDN

954962

Description

female connector, THR solderable
centerline 2.00 mm, direction of connection 90°
closed ends
color black
Tape & Reel packaging possible
double row

Technical Data

General Data

Solder pin length:

3 mm

min. number of poles:

2

max. number of poles:

40

clearance/creepage dist.:

0.65 mm

Protection category:

IP00

Material

insulating material:

PE-HT

Glow-Wire Flammability GWFI:

-

Glow-Wire Flammability GWIT:

-

contact pin material:

CuSn

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

FR20C

HBDN

10

Standard pole sizes from stock

Due to the current global shortage of materials, delivery times for individual products can unfortunately vary significantly at the moment!
