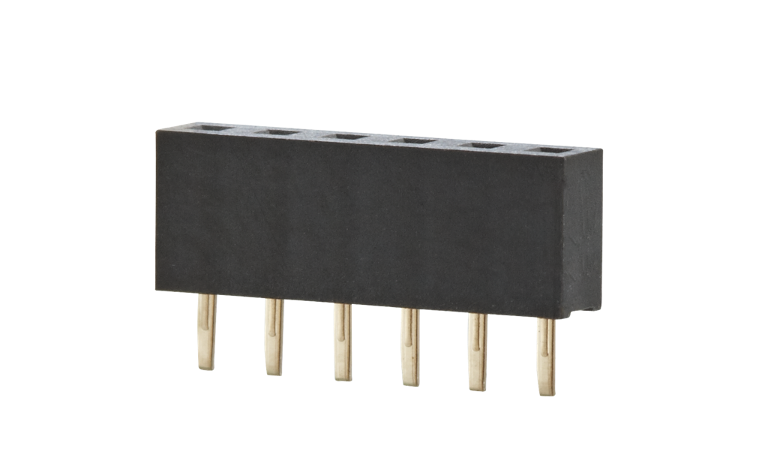

FR20CxxVBNN

954957

Description

female connector, THR solderable
centerline 2.00 mm, direction of connection vertical 0°
closed ends
color black
Tape & Reel packaging possible
single row

Technical Data

General Data

Solder pin length:

2.2 mm

min. number of poles:

2

max. number of poles:

40

clearance/creepage dist.:

0.65 mm

Protection category:

IP00

Material

insulating material:

PE-HT

contact material:

CuSn

Glow-Wire Flammability GWFI:

-

Glow-Wire Flammability GWIT:

-

Contact surface:

Ni + Au

contact pin material:

CuSn

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

FR20C

VBNN

04 06

Pole sizes only available on demand
