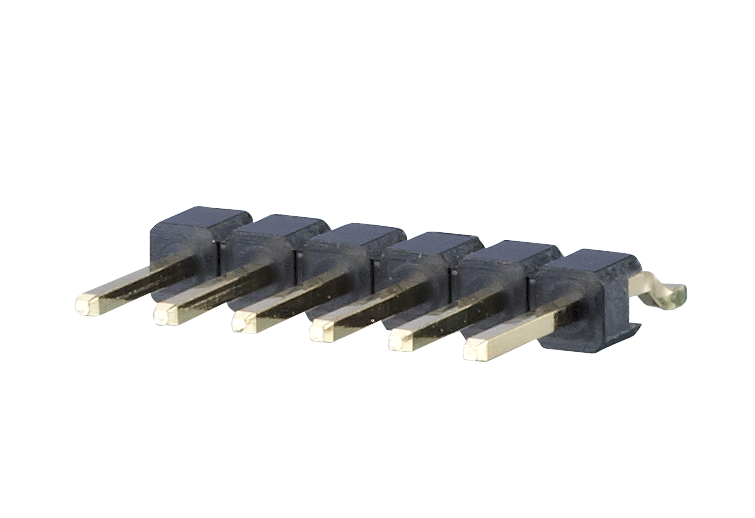

PM202xxHBNN

954968

Description

pin header, SMT solderable
centerline 2.54 mm, direction of connection 90°
color black
Tape & Reel packaging possible
single row

Technical Data

General Data

min. number of poles:

2

max. number of poles:

40

Material

insulating material:

PE-HT

contact material:

CuZnPb

Glow-Wire Flammability GWFI:

-

Glow-Wire Flammability GWIT:

-

Contact surface:

Ni + Au

contact pin material:

CuZn

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

PM202

HBNN

06

Pole sizes only available on demand
