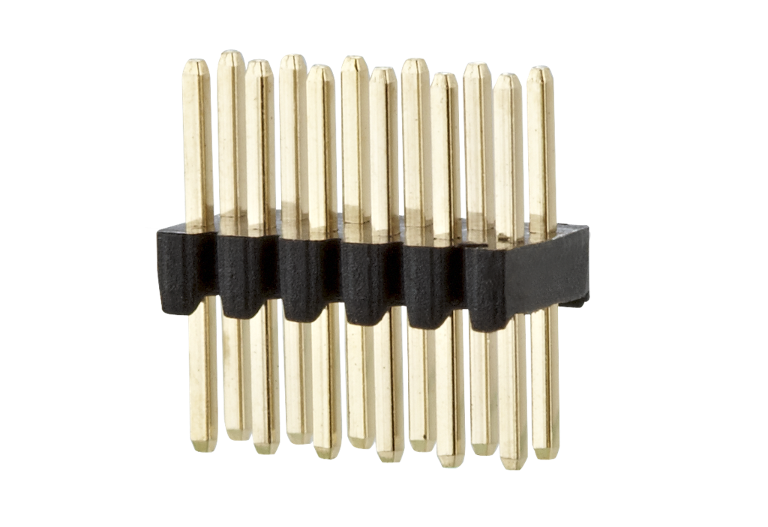

PR20BxxVBDN

954943

Description

pin header, THR solderable
centerline 1.27 mm, direction of connection vertical 0°
color black
Tape & Reel packaging possible
dual rows

Technical Data

General Data

min. number of poles:

2

max. number of poles:

50

Protection category:

IP00

Material

insulating material:

PE-HT

contact material:

CuZn

Glow-Wire Flammability GWFI:

-

Glow-Wire Flammability GWIT:

-

contact pin material:

CuZnPb

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

PR20B

VBDN

03 04 05

Pole sizes only available on demand
