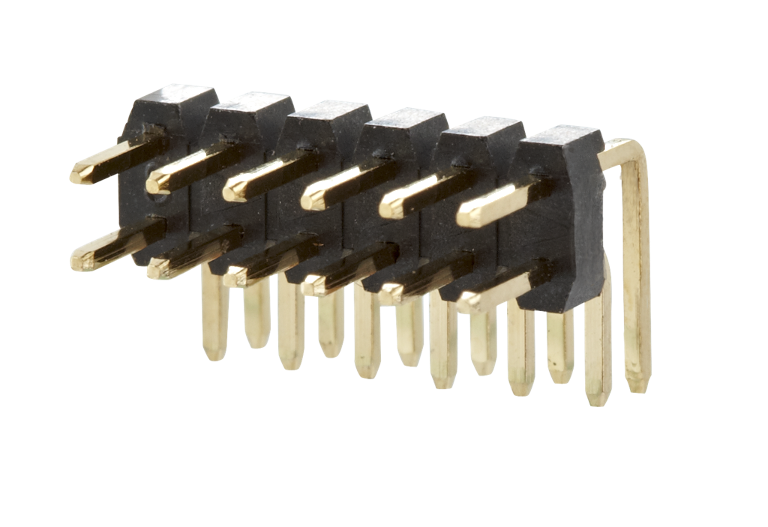

PR20CxxHBDN

954954

Description

pin header, THR solderable
centerline 2.00 mm, direction of connection 90°
color black
Tape & Reel packaging possible
dual rows

Technical Data

General Data

min. number of poles:

2

max. number of poles:

40

Protection category:

IP00

Material

insulating material:

PE-HT

Glow-Wire Flammability GWFI:

-

Glow-Wire Flammability GWIT:

-

contact pin material:

CuZnPb

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-55 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

PR20C

HBDN

02 03 05 06 07 10

Standard pole sizes from stock

Pole sizes only available on demand
