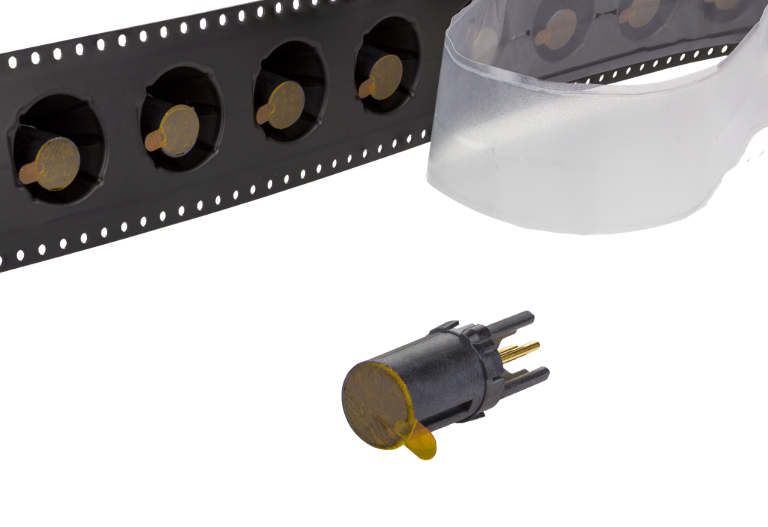

PC board insert M12, A-coded, 5-pole, black, Tape & Reel
Description
- PC board insert M12
- 5-pole, A-coded according to IEC 61076-2-101
- THR solderable
- Top entry
- Contact carriers black
- Tape & Reel packaging
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
Ø 9.2 mm
20.5 mm
0.362 in.
0.807 in.
Single port
Acc. to IPC/JEDEC J-STD-020E-MSL 1
A-coded
Electrical characteristics
60 V
4 A
II
2
Mechanical data
CuZnPb
Ni + Au
LCP UL94 V0
black
pending
Klimatische Eigenschaften
-40 °C
85 °C
-40 °F
185 °F
Check US distributor inventory
Part number
MMT060A815-G201
4251394631882
