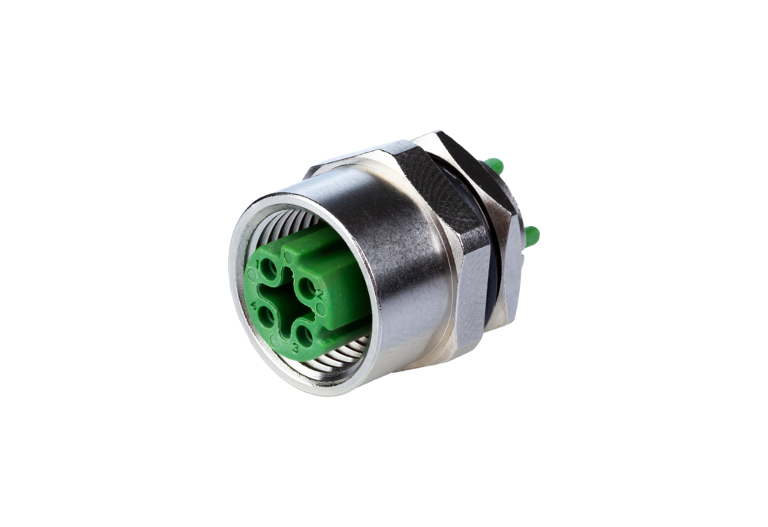

PC board jack M12, D-coded, 4-pole, IP67
Description
- PC board jack M12
- Cat.5
- 4-pole, D-coded according to IEC 61076-02-101
- for 100 MBit Fast Ethernet (IEEE 802.3an)
- THR solderable
- Top entry
- Contact carriers green
- IP67 when plugged in
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
Ø 16.5 mm
20.5 mm
0.65 in.
0.807 in.
Single port
D-coded
Electrical characteristics
250 V
4 A
min. 100 MOhm
II
2
Mechanical data
CuZnPb
CuZnPb
Ni + Au
CuSn
PA UL94 V0
metallike
>= 100
0,6 - 1 Nm
3 Nm +/- 0,5 Nm
IP67 when plugged in
Klimatische Eigenschaften
-40 °C
85 °C
-40 °F
185 °F
Check US distributor inventory
Part number
MMT361A115
4251394621944
