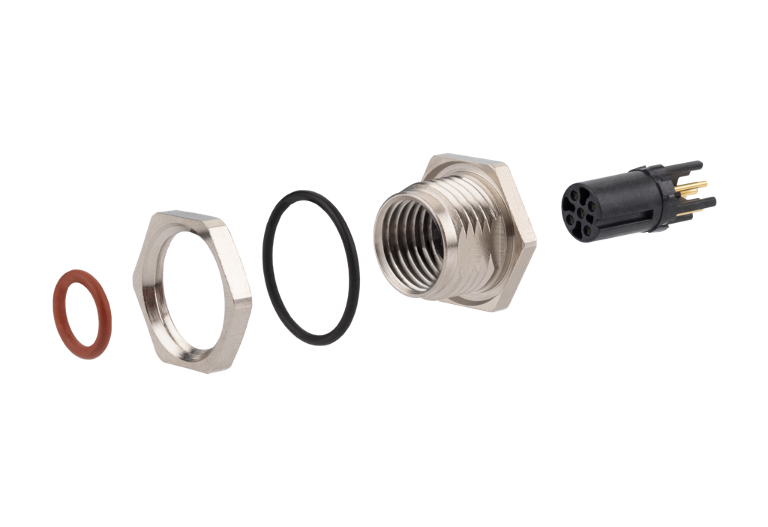

PC board jack M12, A-coded, 5-pole, IP67,
rear mounting, in individual parts
Description
- PC board jack M12
- rear mounting
- 5-pole, A-coded according to IEC 61076-2-101
- THR solderable
- Top entry
- Contact carriers black
- IP67 when plugged in
- in individual parts
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
Ø 21.5 mm
20.5 mm
0.846 in.
0.807 in.
Single port
Acc. to IPC/JEDEC J-STD-020E-MSL 1
A-coded
Electrical characteristics
60 V
4 A
min. 100 MOhm
II
2
Mechanical data
CuZnPb
CuZnPb
Ni + Au
LCP UL94 V0
black
compliant
>= 100
0,6 - 1 Nm
3 Nm +/- 0,5 Nm
IP67 when plugged in
Klimatische Eigenschaften
-40 °C
85 °C
-40 °F
185 °F
Check US distributor inventory
Part number
MMT371A815-0001
4251394632292
