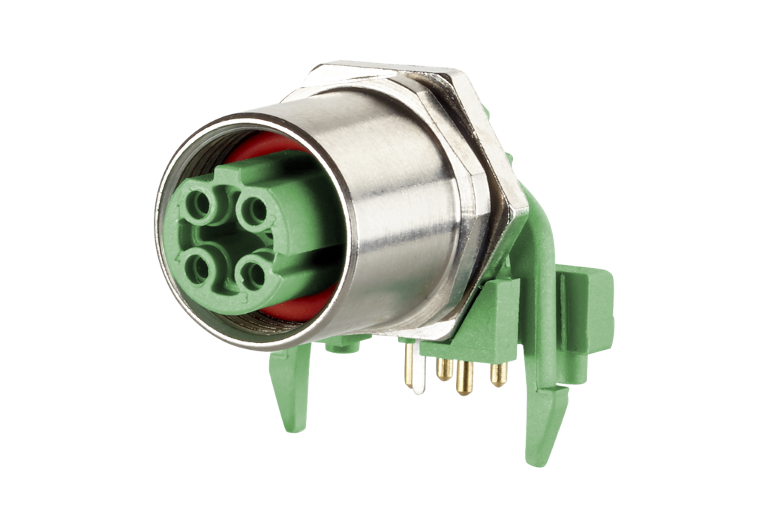

PC board jack M12, D-coded, 4-pole, IP67,
90° angled, max. 2.5 mm wall thickness
Description
- PC board jack M12
- 4-pole, D-coded according to IEC 61076-02-101
- 90° angled
- THR solderable
- Side entry
- Contact carriers green
- IP67 when plugged in
- suitable for a wall thickness up to 2.5 mm
- suitable for applications in the railway industry
Technical Data
General Data
22 mm
0.0
0.866 in.
Single port
D-coded
Electrical characteristics
250 V
min. 100 MOhm
3
Mechanical data
CuZnPb
CuZnPb
Ni + Au
PA UL94 V0
metallike
>= 100
0,6 - 1 Nm
3 Nm +/- 0,5 Nm (see illustration at the end of the data sheet)
IP67 when plugged in
Klimatische Eigenschaften
-40 °C
90 °C
-40 °F
194 °F
Check US distributor inventory

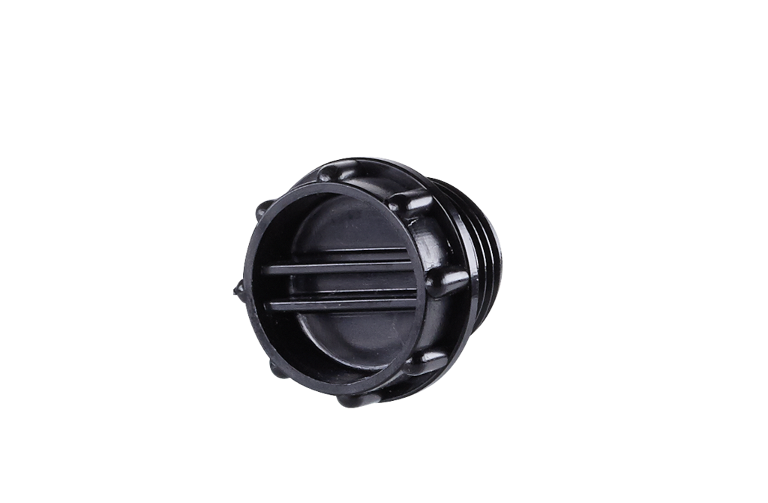

Accessories
Part number
MMT471A115
4250184187967
