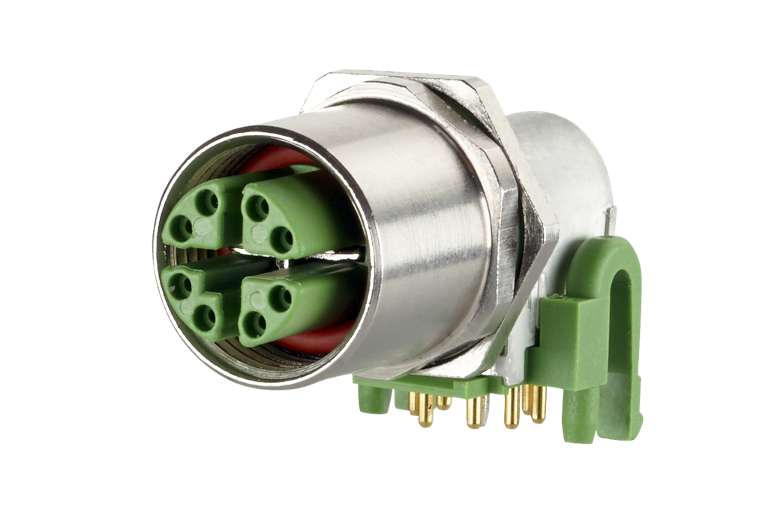

PC board jack M12, X-coded, 8-pole, IP67,
90° angled, max. 2.5 mm wall thickness
Description
- PC board jack M12
- 8-pole, X-coded according to IEC 61076-2-109
- 90° angled
- 10 GBit suitable according to IEEE 802.3an
- THR solderable
- Side entry
- Contact carriers green
- IP67 when plugged in
- suitable for a wall thickness up to 2.5 mm
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
18.95 mm
0.0
0.746 in.
X-coded
Electrical characteristics
50 V AC / 60 V DC
min. 100 MOhm
II
2
Mechanical data
CuZnPb
CuZnPb
Ni + Au
PA UL94 V0
>= 100
0,6 - 1 Nm
3 Nm +/- 0,5 Nm (see illustration at the end of the data sheet)
IP67 when plugged in
Klimatische Eigenschaften
-40 °C
85 °C
-40 °F
185 °F
Check US distributor inventory
Accessories
Part number
MMT471A315
4250184169475
