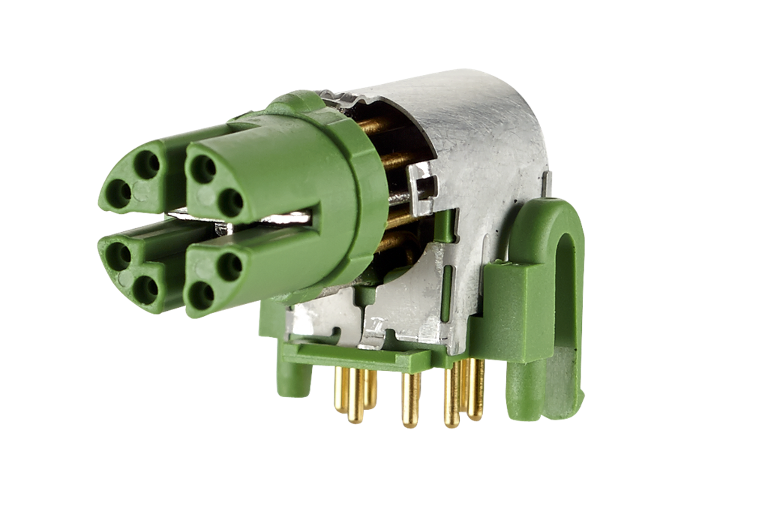

PC board insert M12, X-coded, 8-pole, green, 90° angled
Description
- PC board insert M12
- 90° angled
- 8-pole, X-coded according to IEC 61076-2-109
- 10 GBit suitable according to IEEE 802.3an
- THR solderable
- Side entry
- Contact carriers green
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data

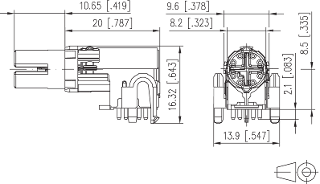

16.32 mm
0.0
0.643 in.
X-coded
Electrical characteristics
50 V AC / 60 V DC
min. 100 MOhm
II
2
Mechanical data
CuZnPb
CuZnPb
Ni + Au
PA UL94 V0
>= 100
Klimatische Eigenschaften
-40 °C
85 °C
-40 °F
185 °F
Check US distributor inventory
Part number
MMTA70A315
4250184169598
