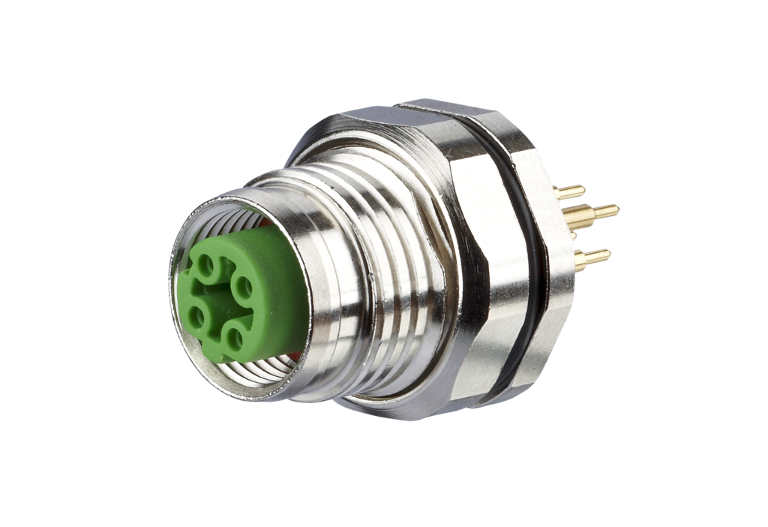

PC board jack M12, D-coded, 4-pole, IP67,
through hole mounting
Description
- PC board jack M12
- 4-pole, D-coded according to IEC 61076-02-101
- THR solderable
- through hole mounting
- Contact carriers green
- IP67 when plugged in
- suitable for applications in the railway industry
Technical Data
General Data
Ø 20 mm
33.8 mm
0.787 in.
1.331 in.
Single port
D-coded
Electrical characteristics
250 V
4 A
min. 100 MOhm
Mechanical data
CuZnPb
CuZnPb
Ni + Au
CuSn
PA UL94 V0
metallike
>= 100
Klimatische Eigenschaften
-30 °C
90 °C
-22 °F
194 °F
Check US distributor inventory
Accessories
Part number
MMW370A1A1
4250184142584
