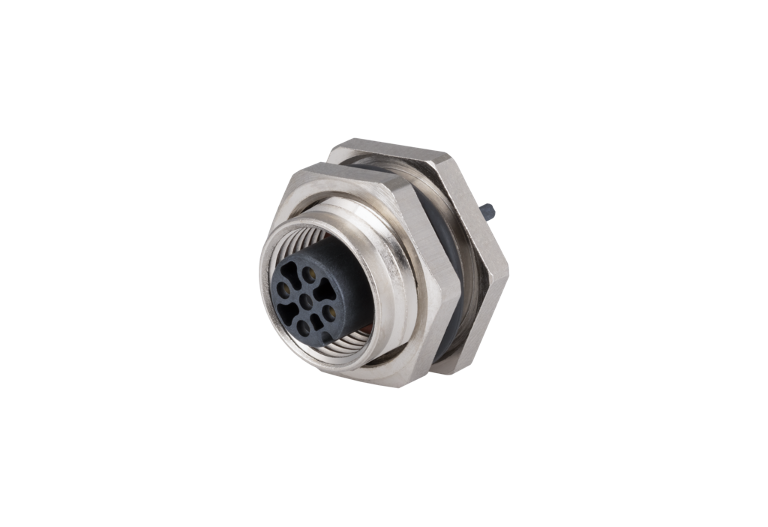

PC board jack M12, A-coded, 3-pole, rear mounting,
IP67 in unmated condition, potted
Description
- PC board jack M12
- rear mounting
- 3-pole, A-coded according to IEC 61076-2-101
- THR solderable
- Top entry
- Contact carriers black
- IP67 in unmated condition
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
Ø 21.5 mm
20.5 mm
0.846 in.
0.807 in.
Single port
Acc. to IPC/JEDEC J-STD-020E-MSL 1
A-coded
Electrical characteristics
250 V
4 A
min. 100 MOhm
II
2
Mechanical data
CuZnPb
CuZnPb
Ni + Au
LCP UL94 V0
black
compliant
>= 100
0,6 - 1 Nm
3 Nm +/- 0,5 Nm
IP 67
Klimatische Eigenschaften
-25 °C
85 °C
-13 °F
185 °F
Check US distributor inventory
Part number
MMT371A615-0009
4251394632223
