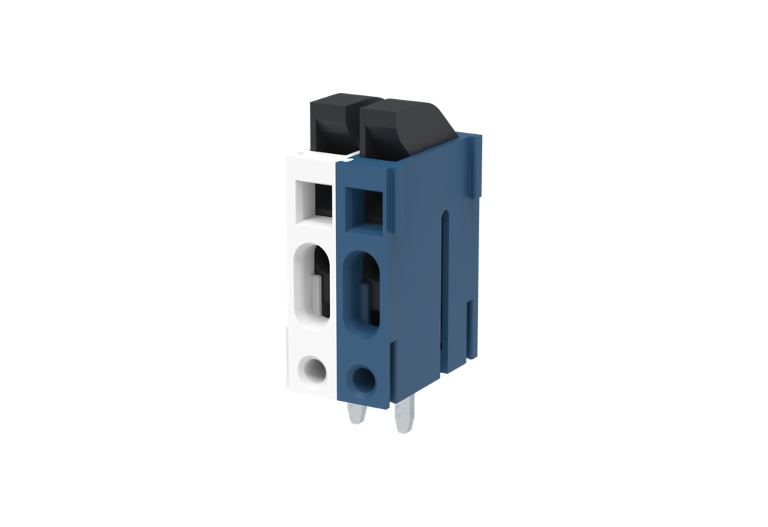

IT02302HDNU AIT0230299-000
Description
- ethernet-capable insulation displacement connector, solderable
- centerline 3.50 mm, direction of connection 90°
- modular
- color coding for conductor colors according to SPE (white/blue)
Technical Data
General Data
3.5 mm
CTI 600
2.3 mm
IP20
1.8 mm
Connection Data
0,2 - 0,34 mm²
AWG 24 - 22
0,2 - 0,34 mm²
AWG 24 - 22
Material
PA66
V0
CuSn
Sn
850 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
AIT0230299-000
